Place of Origin: | China |
Brand Name: | CENO |
Certification: | CE,RoHS,ISO9001,UL |
Model Number: | ECN030-05P |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton/As request |
Delivery Time: | 1 week |
Payment Terms: | T/T,Paypal, Western Union |
Supply Ability: | 500pcs per month |
Current: | 5*2A | Working Speed: | 0~300rpm |
---|---|---|---|
Contact Material: | Precious Metal | Rating Voltage: | 0~220VAC/VDC |
Housing Material: | Aluminium Alloy | Working Temperature: | -20C°~ +60C° |
High Light: | IP51 Through Hole Slip Ring,5*2 A Through Hole Slip Ring,30mm through bore slip ring |

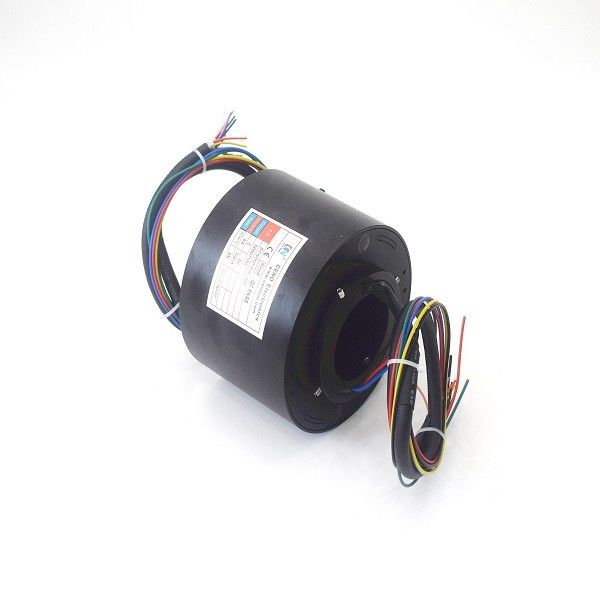

5*2A IP51 Through Hole Slip Ring 220VAC With Inner Bore 30mm
Rotary electrical joint with inner bore 30mm,220VAC voltage & working speed 300rpm with smooth rotation,used for cable reels,military industrial and process control equipments.
A through hole slip ring can be used in any electromechanical system that requires unrestrained.Slip ring is also called a rotary electrical joint,collector,commutator or swivel,slip ring can improve system performance by simplifying operation and eliminating damage prone wires.ECN030-05P provides an economical,readily available solution when a compact through bore configuration is required.This unit provides 30 mm through bore for routing hydraulic or pneumatic lines and a compact 60mm outside diameter for minimal space applications.CENO also can provide other customized solutions according customer’s requirements,please contact us by email sales@ceno360.com.
Specification
ECN030-05P Specification | |
Rings | 5*2A |
Voltage | 0~220VAC/VDC |
Electrical noise | ≤30mΩ(50rpm) |
Dielectric strength | ≥1000V@50Hz |
Insulation resistance | ≥500MΩ@500VDC |
Operating speed | 0-300 rpm |
Contact material | Precious metal |
Housing material | Aluminium alloy |
Working temperature | -20℃~+60℃ |
IP protection grade | IP51 |
Through hole size | 30 mm |
Features
Applications
Optional
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
