Place of Origin: | China |
Brand Name: | CENO |
Certification: | CE,RoHS,ISO9001,UL |
Model Number: | ECN025-15S |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton/As request |
Delivery Time: | 1 week |
Payment Terms: | T/T,Paypal, Western Union |
Supply Ability: | 500pcs per month |
Through Bore Size: | 25.4 Mm | Protection Grade: | IP51 |
---|---|---|---|
Working Speed: | 0~300rpm | Contact Material: | Precious Metal |
Rating Voltage: | 0~35VAC/VDC | Housing Material: | Aluminium Alloy |
Working Temperature: | -20C°~ +60C° | Outer Diameter: | 25.4mm |
High Light: | 25.4mm Electrical Rotating Slip Ring,35VAC Electrical Rotating Slip Ring,25.4mm electrical slip rings |

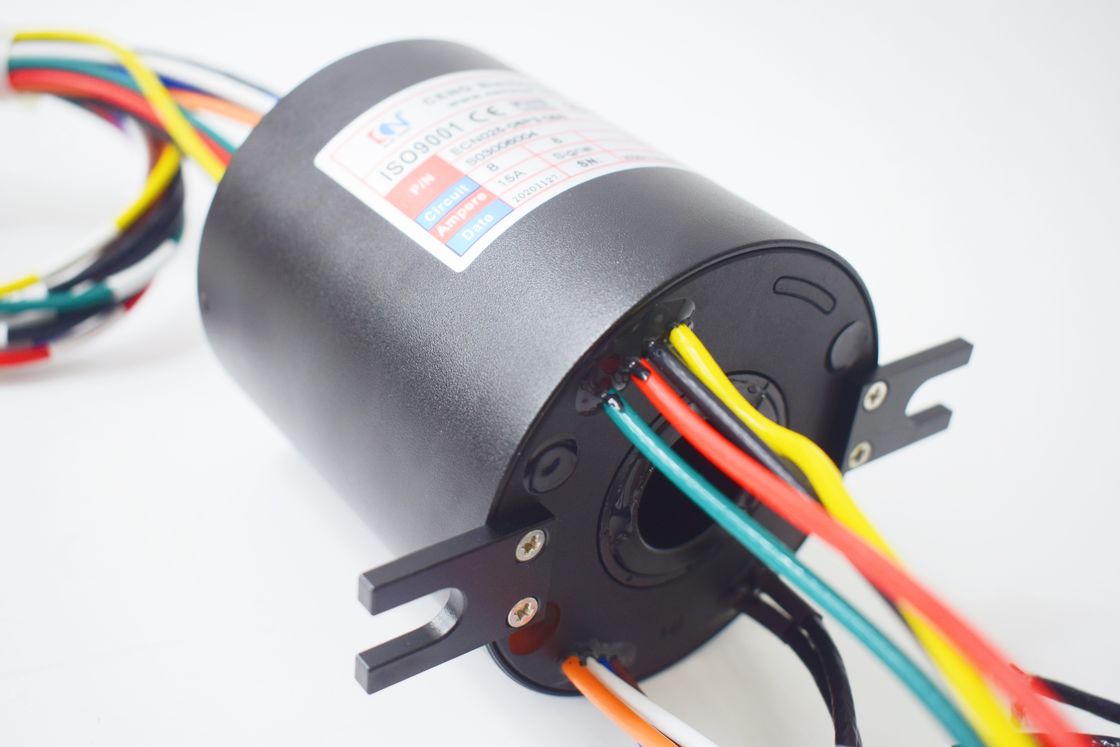

35VAC 25.4mm Electrical Rotating Slip Ring For Medical Machine
Electrical rotary joint slip ring with inner bore 25.4mm working speed 300rpm with smooth rotation,for medical machine,military industrial and process control equipments.
Through hole slip ring can be used in any electromechanical system that requires unrestrained.Slip ring is also called a rotary electrical joint,collector,commutator or swivel,slip ring can improve system performance by simplifying operation and eliminating damage prone wires.The inner hole size can be customized from 0-980mm.ECN025-15S provides an economical,readily available solution when a compact through bore configuration is required.This unit provides 25.4 mm through bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications.It’s can integrated Ethernet,USB2.0, HDMI,fieldbus signal.CENO can provide other customized solutions according customer’s requirements.
Specification
ECN025-15S Specification | |
Rings | 15*1A |
Voltage | 0~35VAC/VDC |
Electrical noise | ≤30mΩ(50rpm) |
Dielectric strength | ≥500V@50Hz |
Insulation resistance | ≥250MΩ@250VDC |
Operating speed | 0-300 rpm |
Contact material | Precious metal |
Housing material | Aluminium alloy |
Working temperature | -20℃~+60℃ |
IP protection grade | IP51 |
Through hole size | 25.4 mm |
Features
Applications
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
