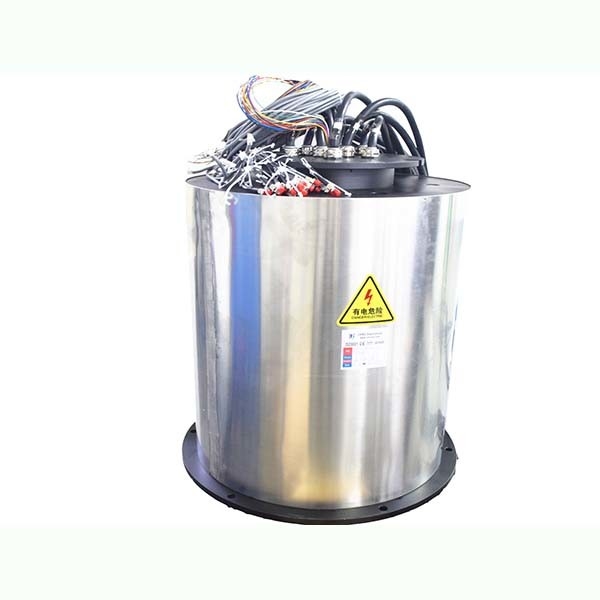

Industrial Hybrid Swivel High Current Slip Ring IP51 5RPM
  • Industrial Hybrid Swivel High Current Slip Ring IP51 5RPM
Industrial Hybrid Swivel High Current Slip Ring IP51 5RPM

Industrial Hybrid Swivel High Current Slip Ring IP51 5RPM

Place of Origin China
Brand Name CENO
Certification ISO9001
Model Number BHCN-C-36P-05EG-20F
Product Details
Circuits & Current:
11x250A, 25x10A, 5xGigabit, 20x Fiber Optic
Housing Material:
Stainless Steel,Aluminium Alloy
Operating Speed:
0~5 Rpm
Contact Material:
Precious Metal, Carbon Brush
IP Protection Grade:
IP51
Electrical Noise:
Max 30mΩ (50rpm)
Highlight:

High Current Slip Ring IP51

,

High Current Slip Ring 50RPM

,

Hybrid Swivel Industrial Slip Ring IP51

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Payment Terms
T/T,paypal, Western Union,
Supply Ability
1000pcy per month
Product Description

BHCN-C-36P-05EG-20F Hybrid swivel



High current rating slip ring and multichannel fiber optic rotary joint are integrated in this model.It is
designed as free maintenance type.In power channel,current rating up to 250A.Beside power
channel,there are gigabit ethernet channel as well.The crosstalk between the high power channel and
signal channel are totally avoid in slip ring.The fiber optic rotary channel number up to 20.All channels are
single mode and with LC connector on both sides.

Specification

BHCN-C-36P-05EG-20F


Circuits & Current 11x250A, 25x10A, 5xGigabit,
20x Fiber optic
Voltage 0~380VAC
Electrical noise Max 30mΩ (50rpm)
Dielectric strength

≥1000V@50Hz (power)

≥300V@50Hz (signal)
Insulation resistance

≥500MΩ@300VDC (power)

≥100MΩ@300VDC (signal)
Operating speed 0~5 rpm
Contact material Precious metal,carbon brush
Housing material Stainless steel,Aluminium alloy
IP protection grade IP51


Outline drawing
Industrial Hybrid Swivel High Current Slip Ring IP51 5RPM 0
