| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN040-08S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current: | 8 Circuits * Signal | Rating Voltage: | 0~24 VAC/VDC |
|---|---|---|---|
| Working Speed: | 0-300 Rpm | Protection Grade: | IP51 |
| Temperature: | -20°C~+60°C | Electrical Noise: | ≤30mΩ(50rpm) |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy Sandblasting Oxide Black |
| High Light: | 8 Circuits Industrial Slip Ring,Industrial Slip Ring IP51,Industrial Slip Ring sandblasting housing |
||
8 rings of signal industry Slip Ring 300rpm Low Electrical Noise 30mΩ IP51

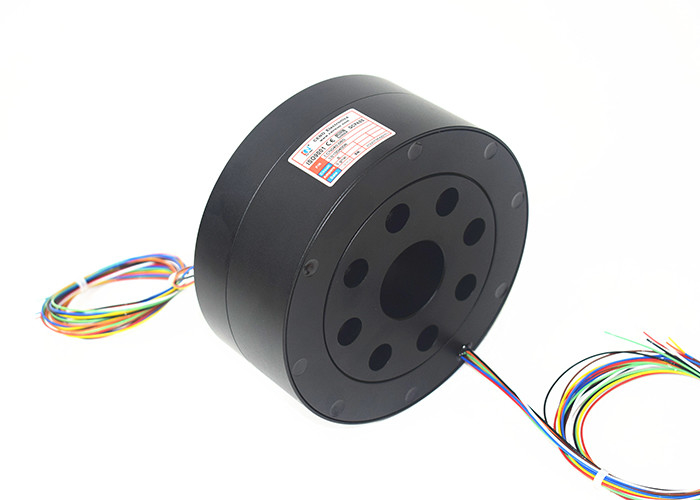

This is customized industry slip ring from CENO electrical company, ECN040-08S is a 40mm through hole integrate 8 wires of signals, the whole body use aluminum alloy sandblasting oxide black more durable than ordinary engineering plastic material and the contact material is precious metal. It can transmit power combine with signal stably, we are professional on shielding technology, anti-interference for line to line. This through hole industry slip ring is used on the injection molding machine as CENO customer request.
Features
• Stable transmission
• Suitable for filling or injection molding machine
• The solution can combine with other signal
Applications
• Injection molding machine
• Filling machine
• Industrial automatic control
Optional
• Circuit number
• Current rating
• Working speed
• IP protection grade
Specification
|
ECN040-08S |
|
|
Current & Circuits |
8 Circuits * Signal |
|
Rating Voltage |
0~24 VAC/VDC |
|
Dielectric Strength |
≥300VAC@50Hz |
|
Insulation Resistance |
100MΩ@100VDC |
|
Lead Wire Size |
AWG24# Wire Teflon® UL |
|
Lead Wire length |
Rotor: 1000mm Stator: 1000mm |
|
Contact resistant floating |
≤30mΩ (50rpm) |
|
Working speed |
0~300 rpm |
|
Contact material |
Precious metal |
|
Housing material |
Aluminum alloy sandblasting oxide black |
|
Working temperature |
-20℃~+60℃ |
|
Working Humidity |
60% |
|
Protect grade |
IP51 |
|
Through hole size |
Ø40mm |
Outlind drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
