Slip Ring industry signal multi-channels 73 circuits IP51 300rpm

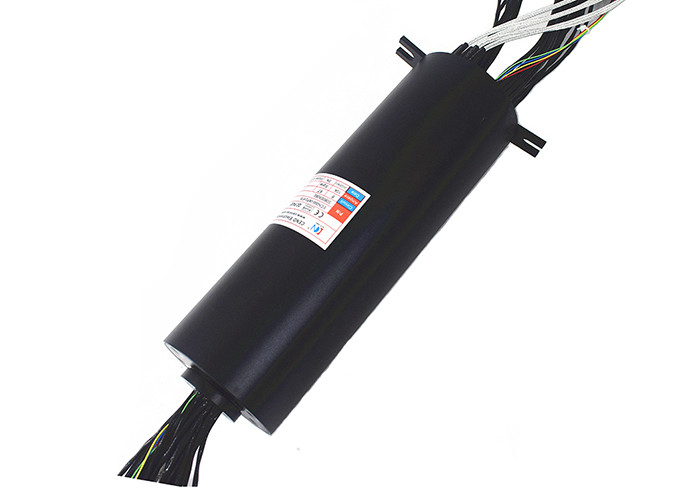

ECN000-06P2-67S is one of the industry signal slip ring from CENO electrical company, there are 6 circuits of 10A electric power and 67 circuits of weak electrical signal, due to the circuits number is over than 60 wires it can be called Multi-channels slip ring too. It can be working stably at the speed of 300 rpm under and the temperature is from -20°C to +60°C. The protect grad is IP51 and optional. This style of industry signal slip ring is mainly used on winding machine, Filling machine, Motion simulation equipment even aeronautical application.
Features
• Multi-channel designs
• Compact size, transfer electric power combined with signal
• Contact material is Gold to Gold
• Install easily for it’s anti-rotation tab structure
Applications
• Winding machine
• Filling machine
• Motion simulation equipment
• Aeronautical application
Optional
• Circuit number & Current size
• Protection grade & work speed
• Signal type & connector plug
• Material of contact and housing
Specification
|
ECN000-06P2-67S
|
|
| Current & Circuits |
73 circuits electric power and signals |
| Rating Voltage |
240 VAC/50VDC |
| Dielectric Strength |
≥1000VAC@50Hz between each circuit (Power)
≥ 300VAC@50Hz between each circuit (Signal)
|
| Isolation resistance |
≥500MΩ@500VDC (Power)
≥100VAC@300VDC (Signal)
|
| Electrical noise |
Max 70mΩ@ 6VDC, 50mA (50rpm) |
| Lead wire size |
AWG16 ( 1.2mm² ) Single wire( soft Teflon );
AWG16 ( 1.2mm² ) Single Shielded wire( soft Teflon );
AWG26 (0.14mm²) Single wire (soft Teflon);
AWG26 (0.14mm²) Two-core Twisted shielded wire (Soft Teflon );
1553B Special Wire
|
| Lead wire length |
Rotor : 3000mm
Stator :3000mm
|
| Operating speed |
0~300rpm |
| Contact material |
Gold to Gold |
| Housing material |
Aluminum alloy |
| Working temperature |
-20°C ~ +60°C |
| Working humidity |
<60% |
| Protect grade |
IP51 |
| Rotation way |
Fix up stator side with anti-rotation side shaft drives rotor running |
Outline drawing
