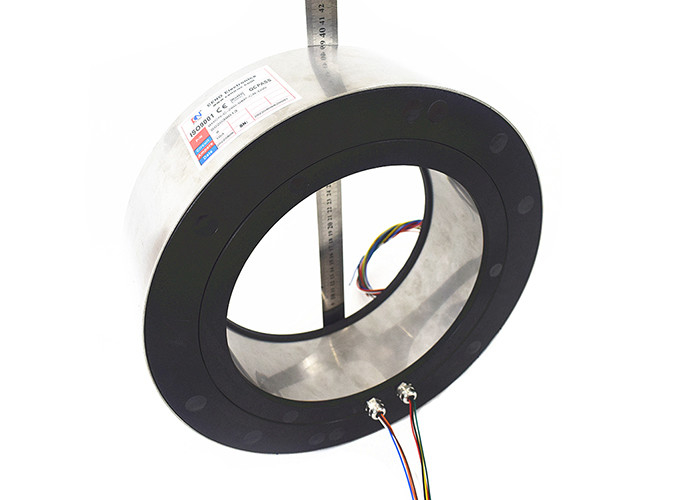

Industry slip ring carbon brush low temperature -40°C inner diameter Ø260mm
BHCN-C-260-08P-CB-DW is a Low temperature Carbon brush Slip Ring with the operating temperature from-40°C~+60°C in CENO electronics company. There are 8 circuits for 10A in it, it can work stably with the speed from 0~8rpm, the IP protection grad is IP54. All of the circuits, working speed, protection grad and the operating temperature are optional as customer’s request. According to our customers feedback, most of the large size low temperature carbon brush slip ring is used on the cylinder, coiled tubing unit, the mines, mountain areas, the oilfield these harsh environments.
Features
• Large size with inner diameter Ø260mm ,
• Working stably low temperature -40°C
• Most of specification is optional
Applications
• Cylinder
• sewage treatmen
• Marine platform
• The mines
Optional
• Circuit number & Current
• Working speed
• Protection grade
• Signal type & Material
Specification
BHCN-C-260-08P-CB-DW |
Specification |
Current & Circuits | 8 circuits * 10A |
Rating Voltage | 1000VAC |
Dielectric strength | ≥2000VAC@50Hz |
Isolation resistance | ≥500MQ@500VDC |
Contact resistance floating | ≤70mΩ (on speed of 50rpm) |
Lead wire length |
Rotor end: 1000mm Stator end: 1000mm |
Operating speed | 0~8rpm |
Contact material | Copper graphite |
Housing material | Stainless steel |
Working temperature | -40°C~+60°C |
Working humidity | < 90% (20°C) |
IP protection grade | IP54 |
Through hole size | Ø260mm |
Installation way | Vertical & Horizontal installation |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
