Slip ring with multi channel 143 circuits apply to lithium battery equipment

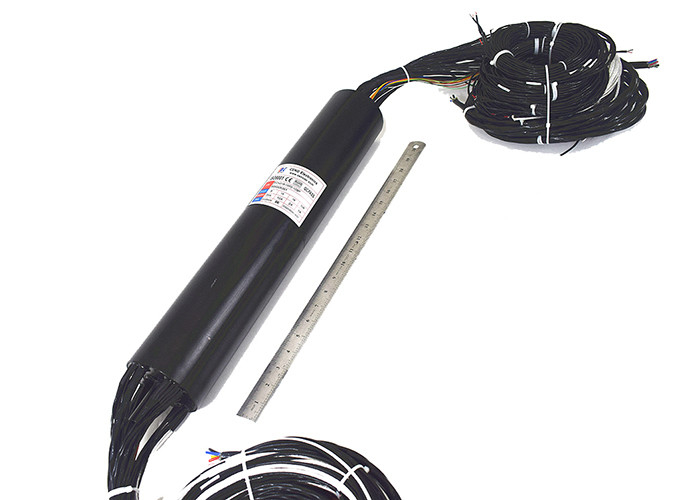

ECN015-15P2-128P is a Multi channels slip ring from CENO company, there are 6 circuits for 20A, 15 circuits for 10A 16 circuits for 2A and 106 circuits for 1A signal. We named slip ring with more than 50 channels as multi channel slip ring in CENO, the channel number is up to 500circuits and optional as customer request. It’s mainly used on the Lithium battery equipment, turntable plat, motion simulator and liquid filling machinery
Features
- Channel number is optional from 50 to 500
- Compact structure, light weight
- Transmit stably,smooth rotation
Applications
- Automatic machine
- Lithium battery equipment
- Turntable plat
- Motion simulator
Optional
- Circuit number & Current
- Working speed
- Protection grade
- Operating temperature
Specification
| Current & Circuits |
6 Circuits * 20A,
15 Circuits * 10A,
16 Circuits * 2A,
106 Circuits * 1A
|
| Rating Voltage |
500/ 240VAC
150/50VDC
|
| Dielectric strength |
≥1000VAC@50Hz(P)
≥300VAC@50Hz(S)
|
| Isolation resistance |
≥500MQ@500VDC(P)
≥100MQ@300VDC(S)
|
| Electrical Noise |
≤70mΩ(50rpm) |
| Operating speed |
0~300rpm |
| Contact material |
Gold to Gold |
| Housing material |
Aluminum Alloy |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60% below |
| IP protection grade |
IP51 |
| Lead wire size |
AWG14#(1 .5mm²)/AWG24#(0.2mm²)
AWG16#(1.2mm²) Single Shielded Wire
AWG14#(1.5mm² ) Four-core Twisted Shielded Wire
AWG16#(1.2mm²) Four-core Twisted Shielded Wire
AWG24#(0.2mm² ) Three-core Twisted Shielded Wire
AWG26#(0.14mm²) Two-core Twisted Shielded Wire
1553B Special Wire
|
| Rotation Way |
Fix up stator side with anti-rotation side shaft drives rotor running |
| Inner diameter |
Ø15mm |
| External diameter |
Ø99mm |
Outline drawing
