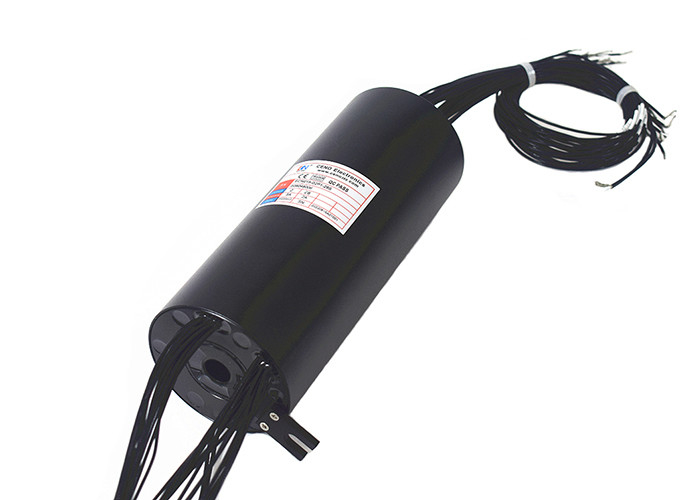

Slip ring with multi channels 65 circuits for industry equipments
ECN025-10P1-55S is an industry signal slip ring or Multi-channels slip ring from CENO company. There are 10 wires for 5A electrical power and 55 circuits for 2A signal data, it can work stably with the speed of 0~500rpm in the temperature from -20°C to +60°C and the humidity is less to 60%. The inner diameter is Ø25.4mm and the external diameter is Ø99mm. Contact material is precious metal and the housing material is aluminum alloy. It’s mainly used in Automation industry, Lithium battery equipment, Motion simulator and Liquid filling machinery.
Features
- Low electric noise 30mΩ
- Through hole designed
- 65 circuits power and signal
- Working speed is 0~500rpm
Applications
- Lithium battery equipment
- Chemical equipment
- Liquid filling machinery
- Automation in industry
Optional
- Circuit number & Current
- Working speed
- Protection grade
- Signal type & Material
Specification
| ECN025-10P1-55S |
Specification |
| Current & Circuits |
10 wires*5A; 55circuits* 2A |
| Rating Voltage |
0~220VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz |
| Isolation resistance |
≥300MΩ@500VDC |
| Electrical noise |
Max 30mΩ(50rpm) |
| Lead wire size |
AWG22# Soft Teflon
AWG26# Soft Teflon
|
| Lead wire length |
Rotor : 1500mm; Stator : 3000mm |
| Operating speed |
0~500rpm |
| Contact material |
Precious Metal |
| Housing material |
Aluminum alloy |
| Working temperature |
-20°C ~ +60°C |
| Working humidity |
<60% |
| Protection grade |
IP51 |
| Rotation way |
Fix up stator side with anti-rotation side shaft drives rotor running |
| Through hole diameter |
Ø25.4mm |
Outline drawing
