| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,UL,ISO9001 |
| Model Number: | ECN050-04P5-10S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Off the shelf |
| Payment Terms: | T/T,Paypal,Western Union, L/C |
| Supply Ability: | 10000pcs month |
| Circuit Number & Current: | 4 Circuits * 20A; 10 Circuits * Signal | Voltage: | 0~380 VAC |
|---|---|---|---|
| Protection Grade: | IP51 | Operating Humidity: | 60%RH |
| Working Speed: | 0~200rpm | Working Temperature: | -20℃~+60℃ |
| Contact & Housing Material: | Precious Metals | Housing Material: | Aluminum Alloy |
| Electrical Noise: | ≤70mΩ (50rpm) | Dielectric Strength: | ≥1500VAC@50Hz ≥ 500VAC@50Hz |
| Isolation Resistance: | ≥500MΩ@500VDC ≥100MΩ@100VDC | Through Hole Size: | Ø50mm |
| Lead Wire Size: | AWG12# 22# Tin Coated Teflon® UL | Lead Wire Length: | Rotor : 300mm Stator : 300mm |
| High Light: | 50mm Integrated Slip Ring,Hollow Shaft Integrated Slip Ring,Low friction Hollow Shaft Slip Ring |
||

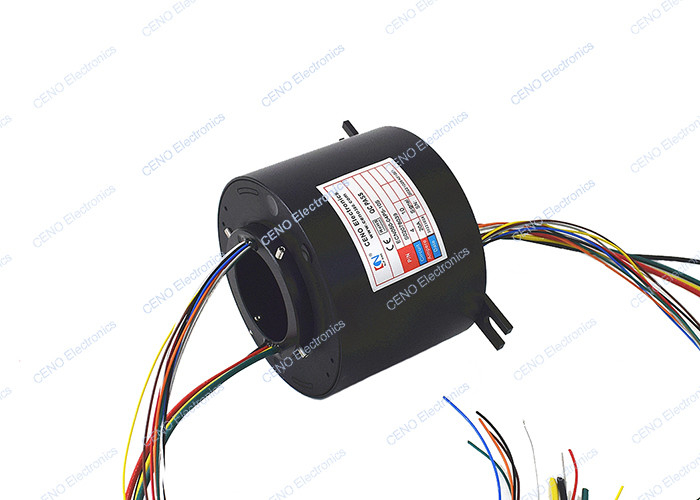

Diameter 50mm Integrated Slip Ring With Hollow Shaft For Industry
ECN050-04P5-10S is through hole electrical slip ring combined with signals and apply to industry from CENO Electronics, there are 4 circuits for 20Amp and 10 channels for signals with the rating voltage 380VAC. It adopt advance fiber brush, multi-point contact, low friction and long life, and the operating system is quiet mechanical, the through hole and diameter is optional from 3mm to 100mm, It’s mainly apply to the harsh environment such as the mines, mountain areas, the oilfield and marine industrial equipment.
Features
Applications
Optional
Specification
|
ECN050-04P5-10S |
Specification |
| Current & Circuits | 4 circuits * 20A; 10 circuits * Signal |
| Rating Voltage | 0~380VAC |
| Dielectric strength |
≥1500VAC@50Hz ≥ 500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC ≥100MΩ@100VDC |
| Electrical noise | ≤70mΩ (50rpm) |
| Operating speed | 0~200rpm |
| Contact material | Precious metals |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | Max60% |
| IP protection grade | IP51 |
| Through hole size | Ø50mm |
| Lead wire size | AWG12# 22# Tin coated Teflon® UL |
| Lead wire length |
Rotor : 300mm Stator : 300mm |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
