Place of Origin: | China |
Brand Name: | CENO |
Certification: | CE,RoHS,ISO9001,UL |
Model Number: | ECN017-04S |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton/As request |
Delivery Time: | 1 week |
Payment Terms: | T/T,Paypal, Western Union |
Supply Ability: | 500pcs per month |
Circuits: | 4circuits*1A | Rating Voltage: | 0~220 VAC/VDC |
---|---|---|---|
Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
Electrical Noise: | ≤70mΩ (50rpm) | Operating Speed: | 0~600rpm |
Working Temperature: | -20°C~+60°C | Working Humidity: | 60% |
IP Protection Grade: | IP51 | Contact Material: | Precious Metal |
Housing Material: | Aluminum Alloy | Through Hole Size: | Ø17mm |
Lead Wire Length: | Rotor : 300mm Stator : 300mm | Installation: | Rotor Side Fixed On The Main Shaft With Screws |
High Light: | 4 Circuits Signal Slip Ring,Precious metal Signal Slip Ring,600rpm Through Hole Slip Ring |

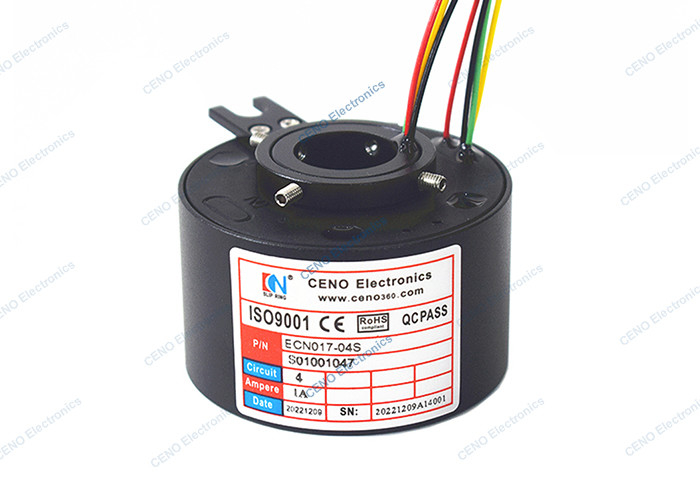

4 circuits signal slip ring with speed 600rpm for industry application
ECN017-04S is an economical through hole signal slip ring with high speed from CENO electronics. There are 4 circuits for 1A signal with rating voltage 0~220 VAC/VDC and electrical noise less than 70mΩ with speed of 50rpm. it’s operating stably at the speed of 0~600rpm within the temperature from -20°C to +60°C and the protection grade is IP51, most of the specification such as IP Grade, working speed, inner or outer diameter can be optional as different application. It’s mainly applied to the automatic machinery, turntable test equipment, electric heating equipment or Filling machine etc.
Specification
ECN017-04S |
Specification |
Current & Circuits | 4circuits*1A |
Rating Voltage | 0~220 VAC/VDC |
Dielectric strength | ≥1000VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC |
Electrical noise | ≤70mΩ (50rpm) |
Operating speed | 0~600rpm |
Contact material | Precious metal |
Housing material | Aluminum alloy |
Working temperature | -20°C~+60°C |
Working humidity | 60% |
IP protection grade | IP51 |
Through hole size | Ø17mm |
Lead wire length |
Rotor : 300mm Stator : 300mm |
Installation | Rotor side fixed on the main shaft with screws |
Features
Applications
Optional
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
