| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN050-05P3-32P1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current: | 5circuits*15A, 32circuits*5A | Rating Voltage: | 0~250VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -40°C~+80°C | Working Humidity: | 60% |
| IP Protection Grade: | IP54 | Through Hole Size: | Ø50mm |
| Lead Wire Size: | AWG14# Tin Coated Teflon®UL AWG22# Tin Coated Teflon®UL | Lead Wire Length: | Rotor : 300mm Stator : 300mm |
| Installation: | Fix Up Rotor Side On The Shaft With Screws | ||
| High Light: | 250V AC Through Hole Slip Ring,Through Hole Slip Ring 50mm,Lightweight Integrated Slip Ring |
||

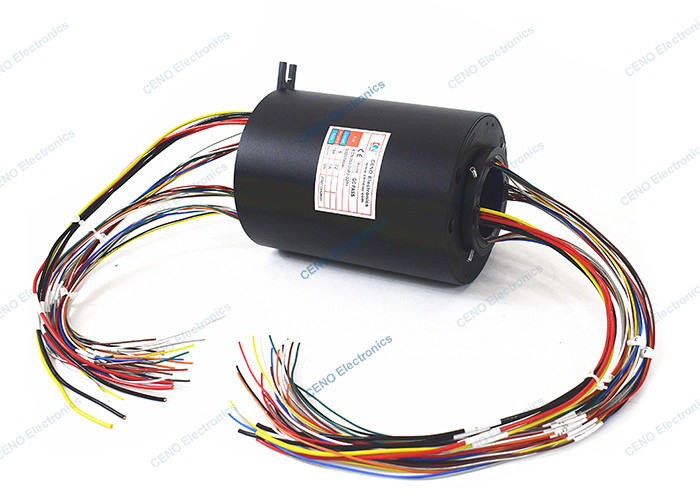

Electric integrated through hole slip ring for low temperature application
ECN050-05P3-32P1 is a integrated slip ring combined 5 circuits for 15A and 32 circuits for 5A power electric signal from CENO Electronics. It also called economical slip ring with through hole and the inner bore size is 50mm easy to assemble. It can be working stably with speed 1~300rpm at the temperature from -40°C to +80°C and most various harsh environment, such as it often apply to the wind turbine, packaging machinery, automatic equipment or mine.
Features
Applications
Optional
Specification
|
ECN050-05P3-32P1 |
Specification |
| Current & Circuits | 5circuits*15A, 32circuits*5A |
| Rating Voltage | 0~250VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Operating speed | 0~300rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -40°C~+80°C |
| Working humidity | 60% |
| IP protection grade | IP54 |
| Through hole size | Ø50mm |
| Lead wire size |
AWG14# Tin coated Teflon®UL AWG22# Tin coated Teflon®UL |
| Lead wire length |
Rotor : 300mm Stator : 300mm |
| Installation | Fix up rotor side on the shaft with screws |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
