| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-38P4-IP56-B |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current & Circuits: | 37circuits*25A, 1circuits*PE | Rating Voltage: | 0~380VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~5rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -57°C~+40°C | Working Humidity: | 60% |
| IP Protection Grade: | IP56 | External Diameter: | Ø220mm |
| Lead Wire Size: | AWG12# Wire Teflon®UL | Lead Wire Length: | Rotor : M4 Terminal Stator : M4 Terminal |
| Installation: | Fix Up Stator Side With Anti-rotation Side Shaft Drives Rotor Running | ||
| High Light: | Industrial Slip Ring IP65,Industrial Slip Ring Low Temperature,Low Temperature Slip Ring CE |
||

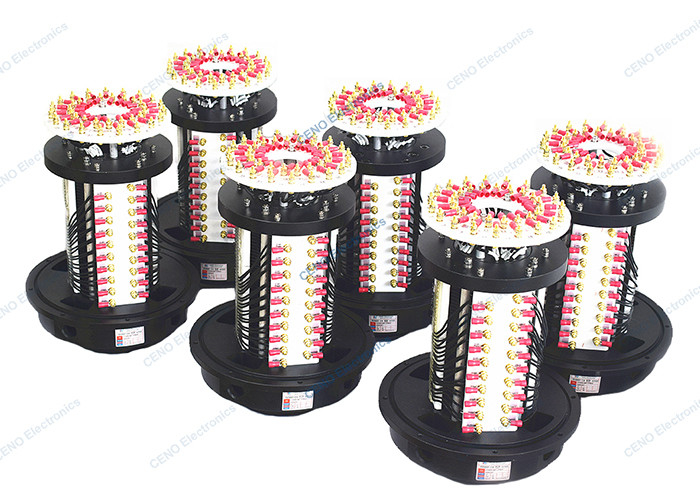

Low Temperature Slip Ring With IP65 For Industry And Automatic Machine
ECN000-38P4-IP56-B is Function slip ring with low temperature from CENO Electronics, there are 37 circuits for 25A, and 1 circuits for PE. In CENO’s high / low temperature slip ring series, it’s designed for harsh environment specially, therefore, the features with anti-corrosion, stable performance, ageing resistance, anti-sharp pounding and high or low temperature resistance design and can meets the needs of working in the cold regions of Siberia, and hot rainforest areas of Brazil.
Features
Applications
Optional
Specification
|
ECN000-38P4-IP56-B |
Specification |
| Current & Circuits | 37circuits*25A, 1circuits*PE |
| Rating Voltage | 0~380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Operating speed | 0~5rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -57°C~+40°C |
| Working humidity | 60% |
| IP protection grade | IP56 |
| External diameter | Ø220mm |
| Lead wire size | AWG12# Wire Teflon®UL |
| Lead wire length |
Rotor : M4 Terminal Stator : M4 Terminal |
| Installation | Fix up stator side with anti-rotation side shaft drives rotor running |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
