| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN025-05P4-05S-01EM |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current & Circuits: | 5circuits*20A, 1group*485 Signal, 1group *100M Ethernet Signal | Rating Voltage: | 0~380VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz (Power) ≥300VAC@50Hz (Signal) | Isolation Resistance: | ≥500MΩ@500VDC (Power) ≥100MΩ@300VDC (Signal) |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+60°C | Working Humidity: | 60% |
| IP Protection Grade: | IP51 | Through Hole Size: | Ø25.4mm |
| External Diameter: | Ø86mm | Lead Wire Size: | AWG12# /17# Tin Coated Teflon®UL 4 Core Twisted Shield Wire Cat5e Net Wire |
| Lead Wire Length: | Rotor : 300mm Stator : 300mm | Installation: | Fix Up Rotor Side On The Guest Main Shaft With Screws |
| High Light: | Through Hole Electric Swivel,100M Ethernet Signal Electric Swivel,100M Ethernet Signal Slip Ring |
||

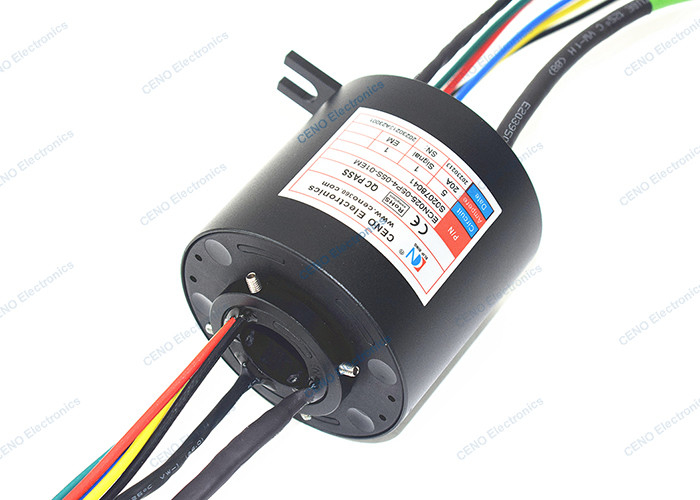

Through Hole Electric Swivel With 100M Ethernet Signal For Industry Application
ECN025-05P4-05S-01EM is an Ethernet integrated Slip Ring with low electrical noise for industry application from CENO Electronics. There are 5 circuits for 20A electrical power, 1group for 485 Signal and 1 channel for 100M Ethernet Signal. Ethernet technology is often wildly used on the network technology, It has the simplicity of Ethernet and the economy of the communication system with similar rate. Due to it’s economy, easy to combine various power and signal, mainly apply to the automatic machinery, communication system or Turntable test equipment etc.
Features
Applications
Optional
Specification
|
ECN025-05P4-05S-01EM |
Specification |
| Current & Circuits | 5circuits*20A, 1group*485 Signal, 1group *100M Ethernet Signal |
| Rating Voltage | 0~380VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz (Power) ≥300VAC@50Hz (Signal) |
| Isolation resistance |
≥500MΩ@500VDC (Power) ≥100MΩ@300VDC (Signal) |
| Electrical noise | ≤30mΩ (50rpm) |
| Operating speed | 0~300rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% |
| IP protection grade | IP51 |
| Through hole size | Ø25.4mm |
| External diameter | Ø86mm |
| Lead wire size |
AWG12# /17# Tin coated Teflon®UL 4 core Twisted shield wire Cat5e net wire |
| Lead wire length |
Rotor : 300mm Stator : 300mm |
| Installation | Fix up rotor side on the guest main shaft with screws |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
