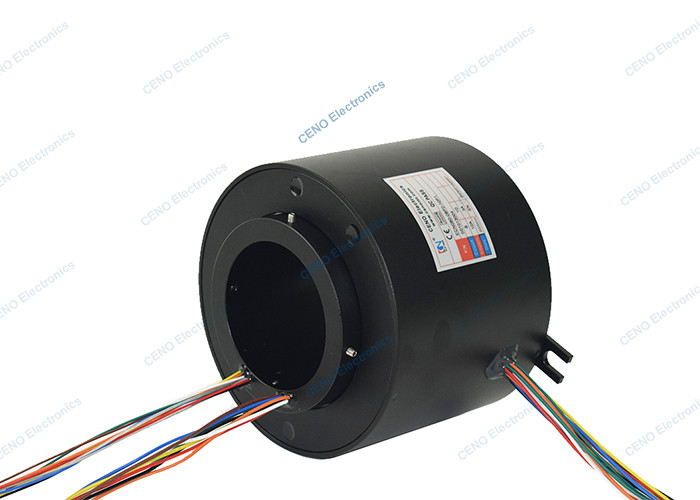

ID 80mm Through Hole Slip Ring Electrical Hollow Shaft Slip Ring

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,UL,ISO9001
Model Number:	ECN080-08P2-10P1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	Off the shelf
Payment Terms:	T/T,Paypal,Western Union, L/C
Supply Ability:	10000pcs month

Contact Now

Detailed Product Description

Circuit Number & Current:	81A, 103A	Rating Voltage:	0~350VDC
Dielectric Strength:	≥1000VAC@50Hz	Isolation Resistance:	≥500MΩ@500VDC
Contact Material:	Precious Metal	Housing Material:	Engineering Plastic + Aluminum Alloy
Working Temperature:	-20°C~+60°C	Working Humidity:	60%RH
IP Protection Grate:	IP51	Lead Wire Size:	AWG17#22#Tin Coated Teflon® UL
Lead Wire Length:	Rotor: 300mm Stator: 300mm	Inner Diameter:	Ø80mm
Installation Way:	Fix Up Stator Side With Anti-rotation Side Shaft Drives Rotor Running
High Light:	ID 80mm Through Hole Slip Ring , Packing machinery Hollow Shaft Slip Ring , 80mm Hollow Shaft Slip Ring

Through Hole Slip Ring Electrical Collector For Industrial Application

ECN080-08P2-10P1 is CENO’s new through hole slip ring which is compatible 8 circuits for data with 10 circuits for weak electrical signals for industrial application. It’s called electrical hollow shaft slip ring, through bore slip ring or Rotary electrical joint. This through hole series slip ring is more economical compare with other integrated slip ring, function slip ring, FORJ, RF Rotary joint or Pneumatic / hydraulic Rotary Union. Till today CENO have over than 5000 designs, for more information about how CENO’s slip ring can fit your specific application, please contact us.

Features
Quiet mechanical system and transmit stably
ID 3-2000mm are optional
Economical, can integrated various data and Install easily

Applications
Automatic machine
Packing machinery
Filling equipment
Harsh environment
Mines / Mountain areas

Optional
Circuit number & Current
Boundary dimension
Contact / Housing Materials
Protection grade
Working speed

Specification

ECN080-08P2-10P1	Specification
Current & Circuits	8 circuits * 1A; 10 circuits * 3A
Rating Voltage	0~380VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Operating speed	0~300rpm
Contact material	Precious Metal
Housing material	Aluminum Alloy
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Lead wire size	AWG17#22#Tin coated Teflon® UL
Lead wire length	Rotor : 300mm Stator : 300mm
Inner diameter	Ø80mm
Installation way	Fix up stator side with anti-rotation side on shaft to drive rotor running

Outline drawing
ID 80mm Through Hole Slip Ring Electrical Hollow Shaft Slip Ring 0

Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification
ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
