| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN038-06P-02S-01EM |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current: | 2*20A; 2*30A; 2*5A; 1Group*RS232 Signal 1group*Profinet | Rating Voltage: | 0~480VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥300VAC@50Hz | Isolation Resistance: | ≥100MΩ@500VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+60°C | Working Humidity: | 60% |
| IP Protection Grade: | IP50 | Through Hole Size: | Ø38.1mm |
| Lead Wire Size: | AW12# 22# Wire Teflon® UL Two-core Twisted Shielded Wires CAT5e + RJ45 (male) | Lead Wire Length: | Rotor : 2000mm Stator : 2000mm |
| Installation: | Fix Up Stator Side With Anti-rotation Side Shaft Drives Rotor Running | ||
| High Light: | PROFINET Slip Ring,RS232 Signal Slip Ring,Automation Signal Slip Ring |
||

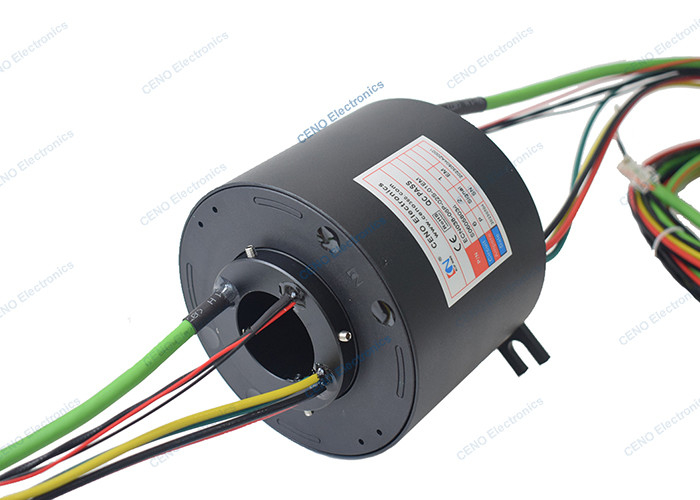

PROFINET Slip Ring With RS232 Signal & Electrical Swivel for Automation
ECN038-06P-02S-01EM is one new design PROFINET Slip Ring with through hole ID38mm for Industrial automation system application from CENO Electronics. PROFINET is a standard for industrial automation using a computer network, and uses standards such as TCP/IP and Ethernet. CENO design and combine the PROFINET signal and Electrical Power into this slip ring, which can transmit various RS, NET and profinet signal stably at the same time, there’s no string code, low loss and no packet loss etc. It can be integrated many data and signal as customer different applications. For more information about how to design for your working environment, please contact us.
Features
Applications
Optional
Specification
|
ECN038-06P-02S-01EM |
Specification |
| Current & Circuits | 2circuit*20A; 2circuit*30A; 2circuits*5A; 1Group*RS232 Signal 1group*Profinet |
| Rating Voltage |
0~480VAC/VDC |
| Dielectric strength | ≥300VAC@50Hz |
| Isolation resistance | ≥100MΩ@300VDC |
| Contact material | Precious metal / Gold to Gold |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP50 |
| Operating speed | 0~300rpm |
| Lead wire size |
AW12# 22# Wire Teflon® UL Two-core twisted shielded wires CAT5e + RJ45 (male) |
|
Lead wire length |
Rotor : 2000mm Stator : 2000mm |
| Inner diameter | Ø38.1mm |
| Rotation way | Fix up stator side with anti-rotation side shaft drives rotor running |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
