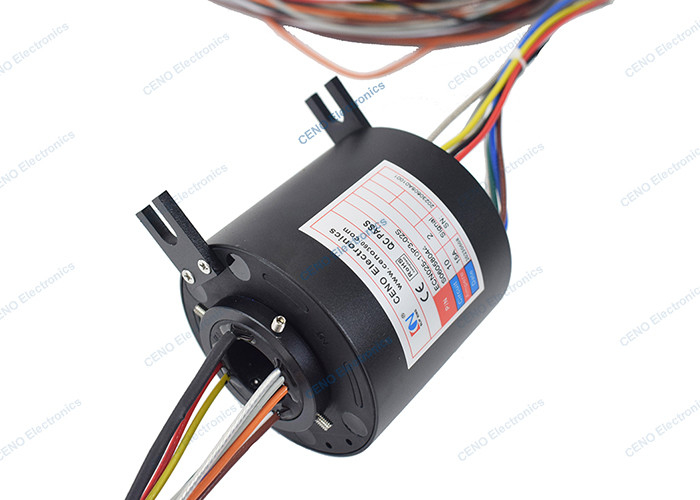

ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector
  • ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector
  • ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector
  • ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector
ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector

ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN025-10P3-02S
Product Details
Circuits & Current:
10*15A; 1*Signal
Rating Voltage:
0~240VAC/VDC
Dielectric Strength:
≥1000VAC@50Hz ≥300VAC@50Hz
Isolation Resistance:
≥500MΩ@500VDC ≥100MΩ@300VDC
Contact Resistance:
30mΩ (50rpm)
Contact Material:
Precious Metal / Gold To Gold
Housing Material:
Aluminum Alloy
Working Temperature:
-20°C~+60°C
Working Humidity:
60 %RH
IP Protection Grade:
IP50
Operating Speed:
0~300rpm
Lead Wire Size:
AW 14# Wire Teflon® UL
Lead Wire Length:
Rotor:2000mm Stator:5000mm
Inner Diameter:
Ø25.4mm
External Diameter:
Ø86mm
Installation:
Fix Up Stator Side With Anti-rotation Side Shaft Drives Rotor Running
Highlight:

ID25mm Through Hole Slip Ring

,

Industrial Through Hole Slip Ring

,

10*15A Through Hole Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description



ID25mm Through Hole Slip Ring with Electric Power Hollow Shaft Collector



ECN025-10P3-02S is CENO economical through hole slip ring which is designed for the automatic industrial system. CENO have six series products. One of them is Power Slip Ring, through hole slip ring as a basis and standard slip ring it has super stable performance, so it’s widely used on many kinds environments, such as the mine, offshore, wind turbine and polar range machinery. And easily integrated with other signals, data for modern information transmission systems. For more information about how CENO slip ring can fit your applications please contact us any time.







Features

  • Basis design with through hole
  • Stable performance and can be integrated kinds data and signals
  • Economical & short deliver time
  • Install easily & transmit stably



Applications

  • Automatic machine
  • Harsh environment
  • Packing machinery
  • Li-Ion Battery equipment
  • Mine



Optional

  • Circuit, Voltage, Current
  • Integrated signals
  • Contact / Housing Materials
  • IP Grade
  • Working speed




Specification

ECN025-10P3-02S

 Specification
Current & Circuits 10circuis*15A; 1circuits*Signal
Rating Voltage 0~240VAC/VDC
Dielectric strength

≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance

≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact material Precious Metal / Gold to Gold
Housing material Aluminum Alloy
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP50
Operating speed 0~300rpm
Lead wire size

AWG14# Wire Teflon® UL

K-Thermocouple cable
Lead wire length

Rotor : 2000mm

Stator : 5000mm
Inner Diameter Ø25.4mm
External diameter Ø86mm
Installation Fix up stator side with anti-rotation side shaft drives rotor running







Outline Drawing

ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector 0

















Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector 1







Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
