Name: 5 Rpm Carbon Brush Slip Ring With Through Hole Id 70mm Electrical Collector
Brand: CENO
SKU: BHCN-C-70-04120
Rating: 4.7 (121 reviews)

Home Products Industrial Slip Ring

5 Rpm Carbon Brush Slip Ring With Through Hole Id 70mm Electrical Collector

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,ISO9001,UL
Model Number:	BHCN-C-70-04120

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton/As request
Delivery Time:	1 week
Payment Terms:	T/T,Paypal, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Channels:	3 Circuits * 120A; 1 Circuit * PE	Rating Voltage:	0~400VAC/VDC
Dielectric Strength:	≥1500VAC@50Hz	Isolation Resistance:	≥500MΩ@1000VDC
Contact Resistance:	≤30mΩ (50rpm)	Contact Material:	Copper-graphite
Housing Material:	Aluminum Alloy	Working Temperature:	-20°C~+60°C
Working Humidity:	≤90%RH	Protection Grade:	IP00
Operating Speed:	0~5 Rpm	Lead Wire Length:	Rotor:35mm2; Stator:1000mm
Inner Diameter:	Ø70mm	Installation Way:	Flange Installation
High Light:	5 rpm carbon brush slip ring , id 70mm carbon brush slip ring , through hole industrial slip ring

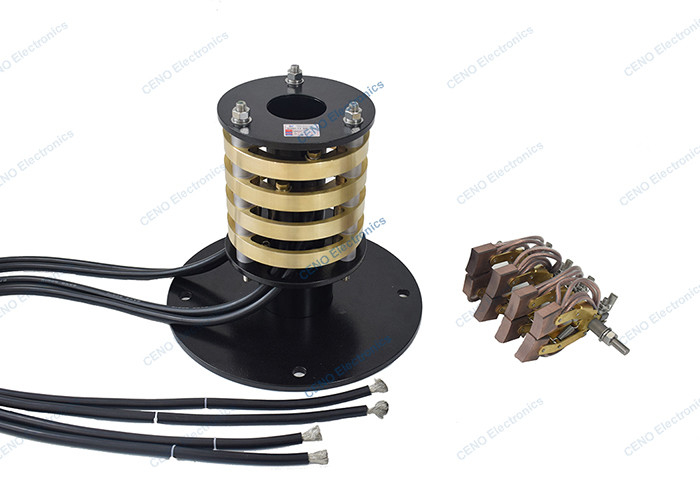

Carbon Brush Slip Ring with through hole & ID70mm Electrical Collector

BHCN-C-70-04120 is CENO new product carbon brush slip ring applied to the mini hydroelectric generator. Carbon brush slip ring is also called High current slip ring, large power slip ring, can transmit high current 100A or higher to 2000A. For long weather resistance, excellent stain resistance, and high electrical safety, the carbon brush slip ring often apply to the marine machinery, engineering machinery. More information about how CENO carbon brush slip ring can fit your specific applications, please contact us freely.

Features

Currents 1-2000A option

Voltage 24-20000V option

Can be integrated various data, signals and power

Install easily & transmit stably

Applications

Mini hydroelectric generator

Harbour machinery

Offshore platform crane

Marine machinery

Engineer machine

Optional

Circuits, Voltage, Current

Installation ways

Contact / Housing Materials

Lead wire length and size

Working speed

Specification

BHCN-C-70-04120	Specification
Current & Circuits	3 circuits * 120A; 1 circuit * PE
Rating Voltage	0~400VAC/VDC
Dielectric strength	≥1500VAC@50Hz
Isolation resistance	≥500MΩ@1000VDC
Contact resistance	≤30mΩ (50rpm)
Contact material	Copper-graphite
Housing material	Aluminum Alloy
Working temperature	-20°C~+60°C
Working humidity	≤90%RH
Protection Grade	IP00
Operating speed	0~5 rpm
Lead wire length	Rotor:35mm²; Stator:1000mm
Inner diameter	Ø70mm
Installation way	Flange installation

Outline Drawing

5 Rpm Carbon Brush Slip Ring With Through Hole Id 70mm Electrical Collector 0

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

5 Rpm Carbon Brush Slip Ring With Through Hole Id 70mm Electrical Collector 1

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

5 Rpm Carbon Brush Slip Ring With Through Hole Id 70mm Electrical Collector 3

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
