| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN070-06P2-IP54 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Channels: | 6*10A | Rating Voltage: | 0~240VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Contact Resistance: | ≤30mΩ (50rpm) | Contact Material: | Precious Metal |
| Housing Material: | Aluminum Alloy | Working Temperature: | -20°C~+60°C |
| Working Humidity: | ≤60%RH | Protection Grade: | IP54 |
| Operating Speed: | 0~150 Rpm | Lead Wire Length: | Rotor:300mm2; Stator:300mm |
| Inner Diameter: | Ø70mm | External Diameter: | Ø135mm |
| High Light: | id 70mm industrial slip ring,hollow shaft industrial slip ring |
||

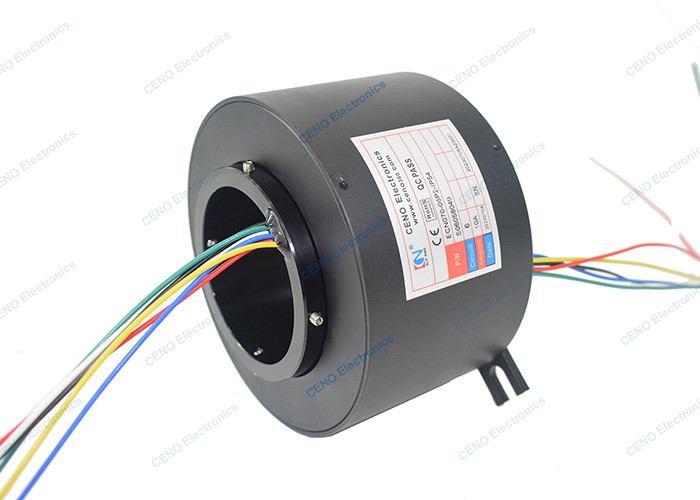

Standart Through Hole Slip Ring with ID70mm Hollow Sharft Rotary Electrical power Joint
ECN070-06P2-IP54 is CENO standard through hole slip ring with inner diameter Ø70mm which is designed for the industrial automatic system. This through hole slip ring provides reliable electrical power and signal transmission solutions for many kinds electron mechanical equipment to achieve complex movements. It can be said that the slip ring is a sign of advanced intelligent movement equipment. For more information about how CENO slip ring can fit your specific application, please contact us freely.
Features
Applications
Optional
Specification
|
ECN070-06P2-IP54 |
Specification |
| Current & Circuits | 6circuits*10A |
| Rating Voltage | 0~240VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance wave range | ≤30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | ≤60%RH |
| Protection Grade | IP54 |
| Operating speed | 0~ 150 rpm |
| Lead wire size | AWG17# Wire Teflon ® UL |
| Lead wire length | Rotor:300mm; Stator:300mm |
| Inner diameter | Ø70mm |
| External diameter | Ø135mm |
Outline Drawing
More information about the through hole slip ring
Introducing CENO Standard Through Hole Slip Ring Which is designed for efficient transmission of electric power from stator side to rotor side. With 6 circuits for a maximum of 10A, this slip ring is a reliable choice for your power transmission needs. Our slip ring boasts precious metal contact material, ensuring durability and longevity, even with frequent use.
Operating temperature is -20°C~+60°C, allowing for seamless operation in a variety of environments. Operating speed ranges from 0~ 150 rpm, allowing for optimal performance in your application. Our slip ring has an inner diameter of Ø70mm, with optional parameters to fit your specific requirements.
Efficient, reliable and customizable, our Standard Through Hole Slip Ring is the perfect solution for your power transmission needs. Contact us today and let our experienced team help you find the right solution for your application.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
