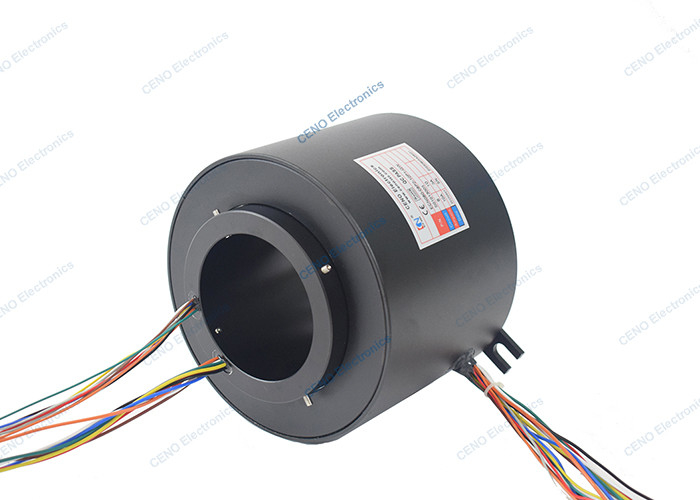

Name: Electric High Temperatre Slip Rings With Through Hole ID 80mm For Industry
Brand: CENO
SKU: ECN080-08P2-10P1-GW
Rating: 4.8 (184 reviews)

Home Products Industrial Slip Ring

Electric High Temperatre Slip Rings With Through Hole ID 80mm For Industry

Product Details:

Place of Origin:	CHINA
Brand Name:	CENO
Certification:	ISO9001
Model Number:	ECN080-08P2-10P1-GW

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Crate/As request
Delivery Time:	2 weeks
Payment Terms:	T/T,Paypal, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Current & Circuits:	810A; 103A	Rating Voltage:	0~380 VAC/VDC
Dielectric Strength:	≥1000VAC@50Hz	Isolation Resistance:	≥500MΩ@500VDC
Electrical Noise:	30mΩ (50rpm)	Contact Material:	Precious Metal
Housing Material:	Aluminum Alloy	Working Temperature:	-20°C~+140°C
Working Humidity:	60 %RH	IP Protection Grade:	IP51
Operating Speed:	0~300rpm	Inner Diameter:	Ø80mm
External Diameter:	Ø160mm	Lead Wire Size:	AWG14#22#Wire Teflon®UL
Lead Wire Length:	Rotor : 300mm; Stator : 300mm	Installation Way:	Fix Rotor Side On Customer Main Shaft With Screws
High Light:	OEM High Temperatre Slip Rings , ID 80mm High Temperatre Slip Rings

Product Description:

ECN080-08P2-10P1-GW is CENO new function slip ring that suits for high temperature working environments. This high temperature is a family of electrical slip ring that designed specifically for the extremely harsh high temperature oilfield-down hole environment. These series slip rings are designed and tested to operate at temperatures of up to 140°C, It can be combined with high temperature resolver or motors for position / speed feedback and motive power. More information please contact us for assistance.

Features

Anti-high temperature design
ID/OD can be customized for special tooling envelopes
Temperature compensation
Install easily & transmit stably

Applications

Medical equipment
Oilfield - down hole
Fuel systems
High temperature roller
Medical equipment

Optional

Circuit, Voltage, Current
Data or signals
Materials
Temperature
Working speed

Technical Parameters:

ECN080-08P2-10P1-GW	Specification
Current & Circuits	8 circuits* 10A; 10circuits*3A
Rating Voltage	0~380 VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Electrical Noise	30mΩ (50rpm)
Contact material	Precious Metal
Housing material	Aluminum Alloy
Working temperature	-20°C~+140°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~300rpm
Inner diameter	Ø80mm
Lead wire size	AWG14# 22# Wire Teflon® UL
Lead wire length	Rotor : 300mm; Stator : 300mm
Installation way	Fix rotor side on customer main shaft with screws

Outline drawing:
Electric High Temperatre Slip Rings With Through Hole ID 80mm For Industry 0

Applications:

ECN080-08P2-10P1-GW is CENO new product Integrated Signal Slip Ring which is designed for the construction machinery specially adjusted for harsh working conditions, and the temperature resistance performance can meet the demands of working in the Siberian cold area and the Brazilian tropic rainforest area. CENO Signal slip rings have ultra long distance signal transmission and long service life with stable transmission, no packet loss and comply with EMC requirement. It is available in a wide range of prices, and the packaging details and delivery time can be discussed based on the customer’s request. This product is in stock and has a supply ability of 1000pcs per month. Payment terms include T/T, Paypal, and Western Union. ECN080-08P2-10P1-GW Industrial Slip Ring is an ideal solution for your industrial needs.

Support and Services:

We provide technical support and service for our Industrial Slip Rings. Our team of experts is available to assist you with any technical questions or solutions you may have. We also offer a variety of services including installation and maintenance, troubleshooting, and custom solutions.
If you need assistance, please contact us through our website or call us directly. We will do our best to help you find the right solution for your application.
We strive to provide the best possible customer service and product support. If you have any questions or concerns, please don’t hesitate to contact us.

Packing and Shipping:

Industrial Slip Ring Packaging and Shipping:

The slip rings meet the requirements of the relevant international codes and standards.
Slip rings are packed in wooden cases or metal boxes.
Large packages are shipped by sea or air.
Small packages are shipped by express.
Each package is labeled with product name, model, size, quantity, origin, etc.
The packages are inspected to ensure that the products are delivered in good condition.

FAQ:

Q: What is the brand name of your Industrial Slip Ring?
A: Our Industrial Slip Ring is CENO brand.
Q: What is the model number of your Industrial Slip Ring?
A: The model number of our Industrial Slip Ring is ECN000-04P-08S.
Q: Where is your Industrial Slip Ring manufactured?
A: Our Industrial Slip Ring is manufactured in China.
Q: What is the minimum order quantity of your Industrial Slip Ring?
A: The minimum order quantity of our Industrial Slip Ring is 1pcs.
Q: What is the delivery time of your Industrial Slip Ring?
A: The delivery time of our Industrial Slip Ring is 2 weeks.
