Power Carbon Brush Electrical Slip Ring With Through Bore For Industry
  • Power Carbon Brush Electrical Slip Ring With Through Bore For Industry
  • Power Carbon Brush Electrical Slip Ring With Through Bore For Industry
  • Power Carbon Brush Electrical Slip Ring With Through Bore For Industry
  • Power Carbon Brush Electrical Slip Ring With Through Bore For Industry
  • Power Carbon Brush Electrical Slip Ring With Through Bore For Industry
Power Carbon Brush Electrical Slip Ring With Through Bore For Industry

Power Carbon Brush Electrical Slip Ring With Through Bore For Industry

Place of Origin CHINA
Brand Name CENO
Certification ISO9001
Model Number ECN240-03P2-06P1
Product Details
Current & Circuits:
3*10A; 6*1A
Rating Voltage:
0~380 VAC/VDC
Dielectric Strength:
≥1000VAC@50Hz
Isolation Resistance:
≥500MΩ@500VDC
Contact Material:
Copper Carbon
IP Protection Grade:
IP00
Operating Speed:
0~100rpm
Inner Diameter:
Ø240mm
Highlight:

Carbon Brush Electrical Slip Ring

,

Through Bore Electrical Slip Ring

,

IP00 Industrial Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Crate/As request
Delivery Time
2 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

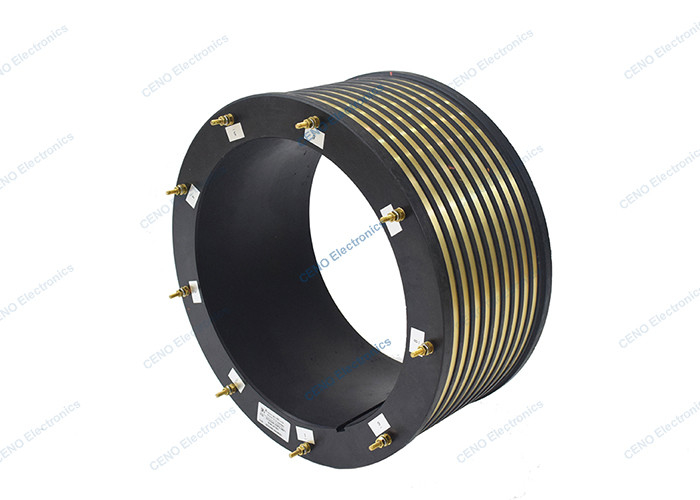

Power Carbon Brush Electrical Slip Ring With Through Bore For Industry

Product Description:

ECN240-03P2-06P1 is a carbon brush slip ring with inner diameter 240mm that is designed for heavy industry system. Carbon brush slip ring has excellent weather resistance stain resistance and high electrical safety, high quality contact material ensure no excess dust is generated. And easy to integrate with other products such as motors and resolver to reduce integration issues. Some of the parameters are redesigned to special customer requirements.





Features

  • Use precious contact material with no dust generate as well
  • Binding post connect, easy connecting wires, excellent weather stain resistance



Applications

  • Engineering Machinery
  • Mining equipment
  • Mountain area
  • Offshore platform
  • Drilling platform



Optional

  • Circuits & Current
  • Operating speed
  • Contact Materials
  • Integrated signal / data
  • ID / OD diameter





Technical Parameters:

ECN240-03P2-06P1 Specification
Current & Circuits 3 circuits * 10A; 6 circuits * 1A
Rating Voltage 0~380 VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
IP protection grade IP00
Operating speed 0~100rpm
Inner diameter Ø240mm










Outline drawing:
 Power Carbon Brush Electrical Slip Ring With Through Bore For Industry 0








Support and Services:

We provide technical support and service for our Industrial Slip Rings. Our team of experts is available to assist you with any technical questions or solutions you may have. We also offer a variety of services including installation and maintenance, troubleshooting, and custom solutions.
If you need assistance, please contact us through our website or call us directly. We will do our best to help you find the right solution for your application.
We strive to provide the best possible customer service and product support. If you have any questions or concerns, please don’t hesitate to contact us.



Packing and Shipping:

Industrial Slip Ring Packaging and Shipping:

  • The slip rings meet the requirements of the relevant international codes and standards.
  • Slip rings are packed in wooden cases or metal boxes.
  • Large packages are shipped by sea or air.
  • Small packages are shipped by express.
  • Each package is labeled with product name, model, size, quantity, origin, etc.
  • The packages are inspected to ensure that the products are delivered in good condition.


FAQ:

Q: What is the brand name of your Industrial Slip Ring?
A: Our Industrial Slip Ring is CENO brand.
Q: What is the model number of your Industrial Slip Ring?
A: The model number of our Industrial Slip Ring is ECN000-04P-08S.
Q: Where is your Industrial Slip Ring manufactured?
A: Our Industrial Slip Ring is manufactured in China.
Q: What is the minimum order quantity of your Industrial Slip Ring?
A: The minimum order quantity of our Industrial Slip Ring is 1pcs.
Q: What is the delivery time of your Industrial Slip Ring?
A: The delivery time of our Industrial Slip Ring is 2 weeks.
