| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN012-31P1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | 27 Circuits* 2A; 4Circuits* 5A | Rating Voltage: | 0~380VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | 500MΩ@500VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+60°C | Working Humidity: | 60% |
| IP Protection Grade: | IP51 | Inner Diameter: | Ø12.7mm |
| External Diameter: | Ø56mm | Lead Wire Length: | Rotor: 300mm; Stator: 300mm |
| Installation: | Rotor Side Fixed On Main Shaft With Screws |

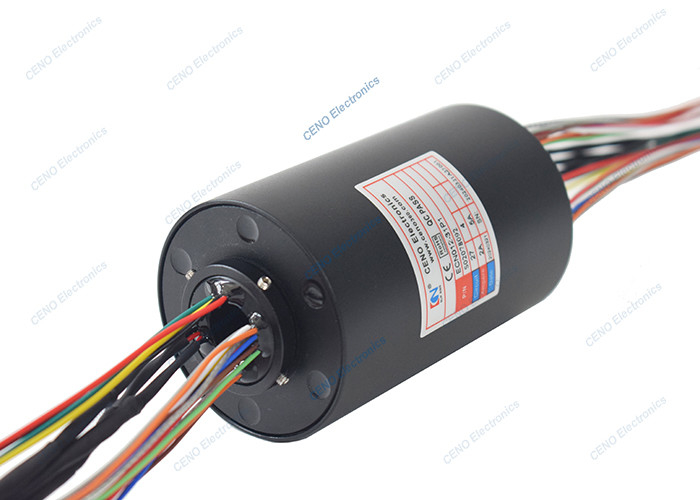

31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic
ECN012-31P1 is CENO new customized through bore slip ring for Industry system, and have 27 circuits 2A current and 4 circuits 5A Electrical power. Through bore conductive slip ring is the most cost-effective and best-selling series of industrial slip rings currently. CENO through bore slip ring often combine power, data, signal, FORJs, RF, Pneumatic or Hydraulic as customer special request and without interference in one rotary system. Due to it’s excellent performance and high cost-effective, more and more applications in industrial field. More information please contact CENO expert.
Features
Applications
Optional
Specification
|
ECN012-31P1 |
Specification |
| Current & Circuits | 27 circuts * 2A; 4 circuits * 5A |
| Rating Voltage | 0-380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | ≤30mΩ (50rpm) |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Inner diameter | Ø12.7mm |
| Lead wire | Rotor:300mm; Stator:300mm |
| Installation | Rotor side fixed on main shaft with screws |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
