Low temperature Slip Ring with Ethernet Signal and Electric power for industry

Place of Origin China
Brand Name CENO
Certification CE,RoHS,UL,ISO9001
Model Number ECN000-20P1-21S-01EG
Product Details
Circuit Number & Current:
20 Circuits * 4A; 21* 2A; 1*1000M Ethernet
Rating Voltage:
0 ~ 28 VAC/VDC
Dielectric Strength:
≥300VAC@50Hz
Isolation Resistance:
≥50MΩ@300VDC
Contact Material:
Precious Material; Gold To Gold
Housing Material:
Aluminum Alloy
Operating Speed:
0~100 Rpm
IP Grade:
IP51
Working Temperature:
-40°C~+60°C
Working Humidity:
≤ 60%
Outer Diameter:
Ø35mm
Lead Wire Length:
As Customized
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
Off the shelf
Payment Terms
T/T,Paypal,Western Union, L/C
Supply Ability
10000pcs month
Product Description

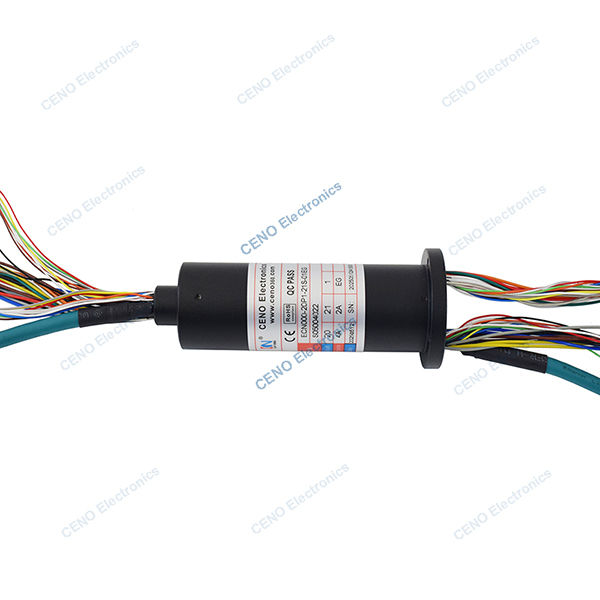

Low temperature Slip Ring with Ethernet Signal and Electric power for industry



ECN000-20P1-21S-01EG is CENO low temperature capsule slip ring with electric power and 1000M Ethernet signal for the equipment working in low temperature environment. CENO capsule slip ring are often offered in a compact size with flange like miniature slip ring, it works stably and transmit electric power and Ethernet signals from one side to other side smoothly. Often equipped in instrument, medical equipment, automatic machine and Robot arm. For more information please contact us.




Features

  • Combine Ethernet & Electric
  • Stable transmitting, no string code, low loss comply with EMC
  • Can be integrated various data
  • Install easy & Free maintenance


Applications

  • Automatic machine
  • Turntable testing machine
  • Intelligent housing system
  • Filling machinery
  • Medical equipment


Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Protection grade
  • Working speed





Specification

ECN000-20P1-21S-01EGSpecification
Current & Circuits20 circuits * 4A; 21* 2A; 1*1000M Ethernet
Rating Voltage0 ~ 28 VAC/VDC
Dielectric strength≥300VAC@50Hz
Isolation resistance≥50MΩ@300VDC
Contact resistance wave≤ 50mΩ
Working temperature-40°C~+60°C
Working humidity60 %RH
IP protection gradeIP51
Operating speed0~100rpm
Outer diameterØ35mm
Contact materialGold to gold
Housing materialAluminum alloy
Lead wire sizeAWG 22# 26# Wire Teflon® UL; CAT6
Lead wire lengthRotor: 300±10mm; Stator: 300±10mm





Outline drawing
Low temperature Slip Ring with Ethernet Signal and Electric power for industry 0





Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
