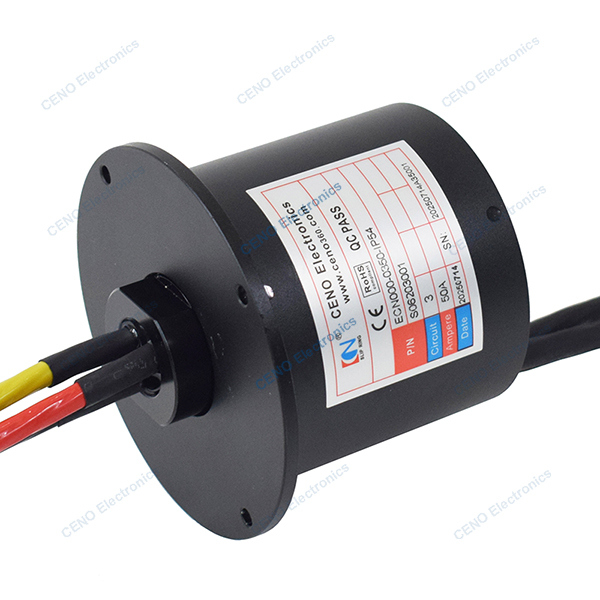

Electric Power Slip Ring with 3 circuits Electrical rotary joint for industry
ECN000-0350-IP54 is CENO industry slip ring with 3 circuits electric power and 50A for automatic machine. An industrial slip ring is a device that enable 360-degree unrestricted rotation in various industrial application. It is primarily used to transmit power, data signals or other media between rotating equipment and fixed structures. such as turntables, wind turbines and medical imaging equipment.For more information about how CENO slip ring can fit your application please contact us.
Specification
| ECN000-0350-IP54 Specification |
| Current & Circuits |
3 circuits * 50A |
| Rating Voltage |
0 ~ 600 VAC/VDC |
| Dielectric strength |
≥1500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60%RH |
| IP protection grade |
IP54 |
| Operating speed |
0~100rpm |
| Outer diameter |
Ø80mm |
| Contact material |
Precious metal |
| Housing material |
Aluminium Alloy |
| Lead wire size |
AWG7# Tin coated Teflon® UL |
| Lead wire length |
Rotor: 500mm; Stator side:500mm |
| Rotation way |
Stator side: Flange installation |
| Rotary torque |
≤1.0N*m |
Features
- Protection IP51-IP68 optional
- Circuits 1 - 300 circuits optional
- Stable transmitting, no string code, can be integrate various signal /data
- Install easy & Free maintenance
Applications
- Automatic machine
- Rotary working stations
- Automated production
- Cranes & port loading
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
