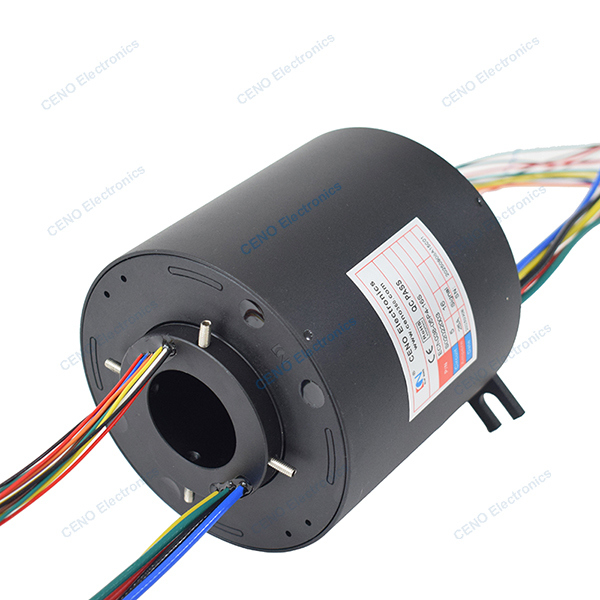

Industry Slip Ring with Through Hole and Electric Power Signal and optional
ECN038-05P4-16S is CENO conductive slip ring with through hole 38mm and combine 5circuits electric power and 16 circuits signal. As a classical slip ring, it can be combined with kinds of Ethernet, USB, profinet signals, data and forjs or rf rotary union. And CENO have accumulated rich design and production experience in high and low temperature, shockproof, anti-corrosion, waterproof and other application requirements. For more information about how CENO slip ring can fit your application please contact us.
Specification
|
ECN038-05P4-16S
|
Specification |
| Current & Circuits |
5 circuits * 25A; 16 circuits * Signal |
| Rating Voltage |
0 ~ 380 VAC/VDC |
| Dielectric strength |
≥1500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP51 |
| Operating speed |
0~250rpm |
| Contact material |
Precious metal |
| Housing material |
Aluminum alloy |
| Inner / Outer diameter |
38.1mm /119mm |
| Lead wire size |
As customized |
| Lead wire length |
As customized |
| Rotation way |
Fix up stator side with anti-rotation tab |
Features
- Protection IP51-IP68 optional
- Circuits 1 - 300 circuits optional
- Stable transmitting, no string code, can be integrate various signal /data
- Install easy & Free maintenance
Applications
- Automatic machine
- Rotary working stations
- Automated production
- Cranes & port loading
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
