|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Delivery Time:||Off the shelf|
|Payment Terms:||T/T,Paypal,Western Union|
|Supply Ability:||5000pcs month|
|Through Hole Size:||Ø55mm||Current Rating:||5*10A ;14*signal|
|Voltage Rating:||32VAC||Contact Point Material:||Precious Metal|
|Protection Level:||IP54||Insulation Resistance:||300MΩ@500VDC|
miniature through bore slip ring,
thermocouple slip ring

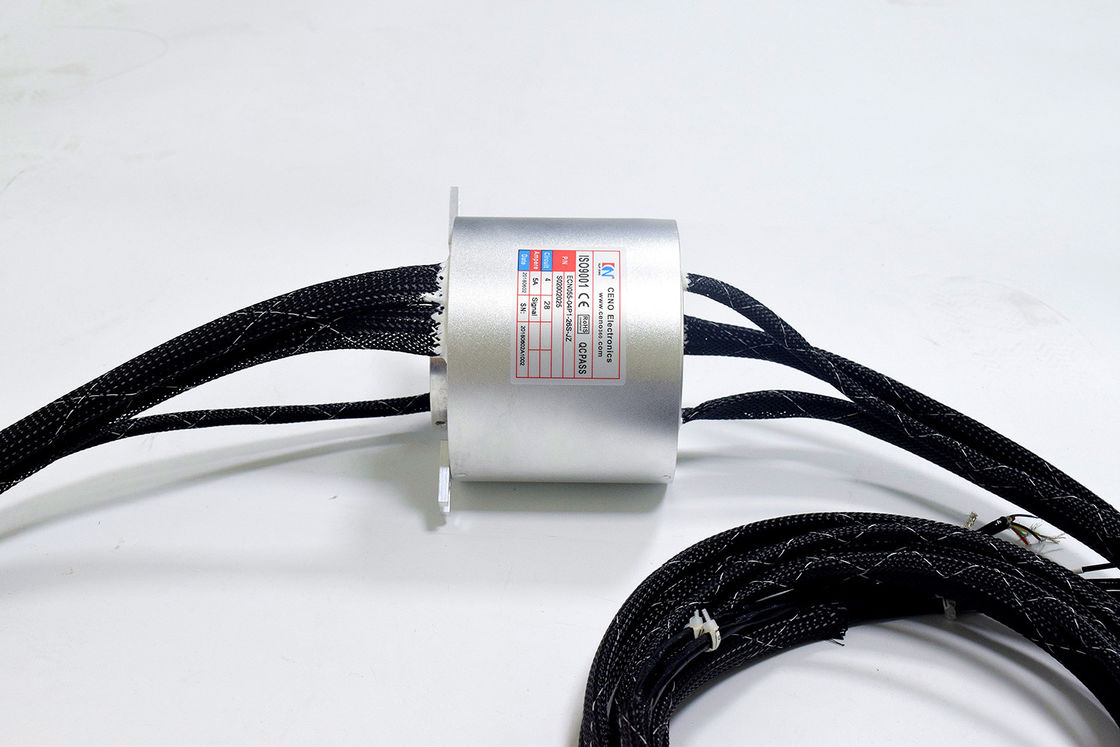

Reliable Antenna Hollow Bore Slip Ring Transferring Power And Signal
Through hole slip rings is also called as hollow shaft slip rings.CENO's hollow shaft slip ring hole size from 3mm to 5000mm are optional.Standard through hole are 12.7mm, 25.4mm, 38.1mm, 50mm, 60mm, 70mm, 80mm, 100mm which we named as ECN012, ECN025, ECN038, ECN050 and all other size are capable to be customized.
Shaft mounting way
Put the slip ring in the desirable location and tighten four set screws (Not supplied) to the shaft. The max torque is 25 1b—in (Can not exceed).
Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring. Do not constrain wiring such that wire flexing (cold working) occurs.
Doing so will ultimately cause failure (breakage of the wiring).
Use 5/16 (Max diameter) screw fix the Anti-rotation tab properly.
Flange mounting (Customized) way
(1)Align the mounting holes in the flange to mounting base and install flat washers and mounting screws(NOT SUPPLIED).Securely tighten screws.
(2)Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
(3)Use 5/16 (Max diameter) screw fix the Anti-rotation tab properly.
Support power and signal transmitting
|Through hole size||Ø55mm|
|Contact material||Precious metal|
CENO is one technology company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24/7 consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
