Compact Through Hole Slip Ring Rotating Speed 1000rpm For Power / Signal Transmission

Compact Through Hole Slip Ring Rotating Speed 1000rpm For Power / Signal Transmission

  • Compact Through Hole Slip Ring Rotating Speed 1000rpm For Power / Signal Transmission
  • Compact Through Hole Slip Ring Rotating Speed 1000rpm For Power / Signal Transmission
  • Compact Through Hole Slip Ring Rotating Speed 1000rpm For Power / Signal Transmission
  • Compact Through Hole Slip Ring Rotating Speed 1000rpm For Power / Signal Transmission
Compact Through Hole Slip Ring Rotating Speed 1000rpm For Power / Signal Transmission
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ECN025-05P-16P2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/Crate
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 5000pcs month
Contact Now
Detailed Product Description
Current: 5*20A ,16*10A Rating Voltage: 380VAC
Dielectric Strength: ≥1000V@50Hz Working Speed: 0~300rpm
Through Bore Size: Ø25.4mm Electrical Noise: ≤70mΩ (50rpm)
High Light:

miniature through bore slip ring

,

thermocouple slip ring

,

through hole slip ring 1000 rpm

Compact Slip Rings For Rotating Speed Until 1000 rpm For Power And Signal Transmission





Compared to similar products with high rotation accuracy, more stable performance, longer life. The use of contact materials using precious metals, torque is small, stable operation, long life, small resistance fluctuations, contact resistance is small, to ensure excellent transmission performance.Typical applications include automation equipment, camera gimbal, robots and so on.









Applications

  • Radar antenna ,motion simulator
  • Construction engineering
  • Robot,package equipment





Features

  • Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
  • Low friction, long life,Low torque, smooth rotation
  • Transmit data and analog signal,compatible with data bus protocol




Optional

  • Through hole size
  • Circuit number
  • Installation way
  • IP protection grade




Parameter

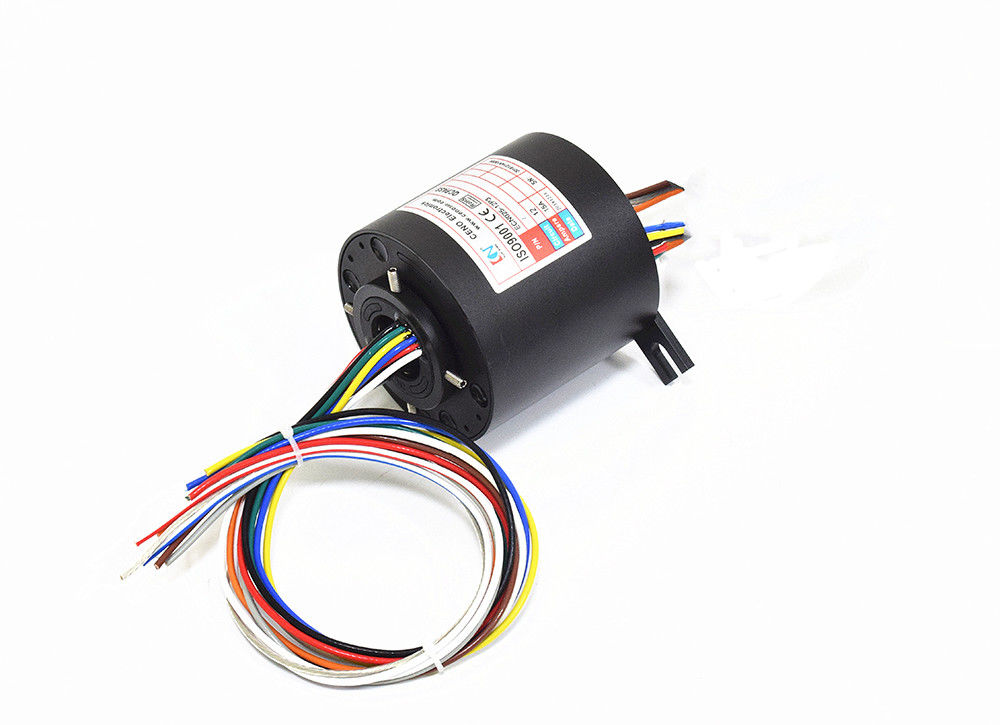

ECN025-05P-16P2 Specification Picture
Current 5*20A ,16*10A Compact Through Hole Slip Ring Rotating Speed 1000rpm For Power / Signal Transmission 0
Rating voltage 380VAC
Electrical noise ≤70mΩ (50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Through bore size Ø25.4mm
Working temperature -20℃~+60℃
Protection grade IP54
Working speed 0~300rpm
Contact material Precious metal







Outline drawing


Compact Through Hole Slip Ring Rotating Speed 1000rpm For Power / Signal Transmission 1




Reduce costs
Improve manufacturing efficiency. You asked, we delivered.CENO Electronics offers high-performance 360° rotation solutions,
refined over years of helping customers with thousands of system designs in hundreds of industries.



How do you determine which is best for you?
Step one: Reference our slip ring products parameter chart, a matrix showing the key performance for CENO's products.
Keep in mind that if you don’t see the device needed for your project, we can work together on a derivative or a full custom device to fit your needs.
Step two: Fill out the custom form with necessary specification info, so we will be able to provide an evaluation solution, quote or more information on how we can make required slip ring easier.





Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.

Q: How do we mount the hollow shaft slip ring on our machinery?

Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.





CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.



Honor

ISO9001,CE,RoHS,UL,Explosion-proof



Service CENO provides

Solution offerring for 360° rotation system.

Mass and customized production.

24 hours,7days consultant service.



Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
