Standard Through Hole Slip Ring With CE/ROHS/ISO9001 Certificate

Standard Through Hole Slip Ring With CE/ROHS/ISO9001 Certificate

  • Standard Through Hole Slip Ring With CE/ROHS/ISO9001 Certificate
  • Standard Through Hole Slip Ring With CE/ROHS/ISO9001 Certificate
  • Standard Through Hole Slip Ring With CE/ROHS/ISO9001 Certificate
  • Standard Through Hole Slip Ring With CE/ROHS/ISO9001 Certificate
Standard Through Hole Slip Ring With CE/ROHS/ISO9001 Certificate
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ECN038-06P1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/Crate
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 5000pcs month
Contact Now
Detailed Product Description
Circuit ¤t: 6*5A Rating Voltage: 380VAC
Dielectric Strength: ≥1000V@50Hz Working Speed: 0~300rpm
Through Bore Size: Ø38.1mm Contact Material: Precious Metal
High Light:

miniature through bore slip ring

,

thermocouple slip ring

Standard Through Hole Slip Ring With CE/ROHS/ISO9001 Certificate




The through bore slip rings use the best advanced fiber brush technology and precious metal multi-contacting, they offer low electrical noise for high data rate field bus transmission, low contact pressure for long lifetime and they are maintenance free. If you have specific customized requirements, please feel free to consult us in order to create the most suitable recommendation for your specification.







Applications

  • Motion simulator
  • Industrial automation equipment
  • Package equipment
  • Lithium battery equipment







Optional

  • Through hole size
  • Circuit ,current rating
  • Installation way
  • IP protection grade







Features

  • Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
  • High reliability,long life
  • Transmit data and analog signal,compatible with data bus protocol








Parameter


ECN038-06P1 Specification Picture

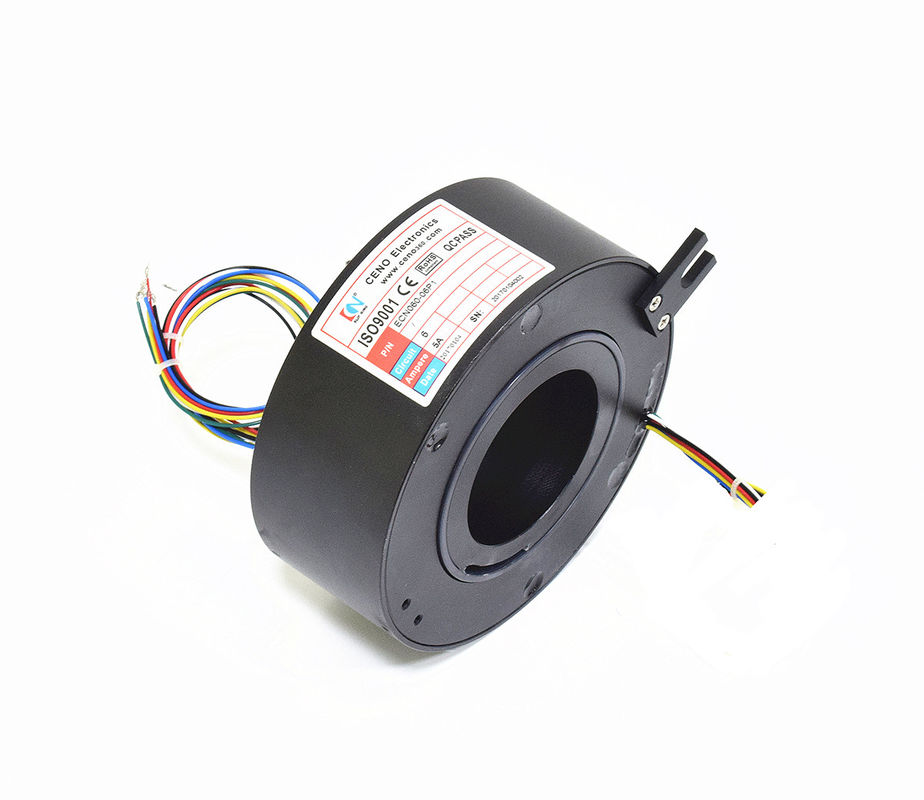

Current 6*5A Standard Through Hole Slip Ring With CE/ROHS/ISO9001 Certificate 0
Rating voltage 380VAC
Electrical noise ≤70mΩ (50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance 500MΩ@500VDC
Through bore size Ø38.1mm
Working temperature -20℃~+60℃
Protection grade IP54
Working speed 0~300rpm
Contact material Precious metal





Outline drawing




Standard Through Hole Slip Ring With CE/ROHS/ISO9001 Certificate 1






Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.

Q: How do we mount the hollow shaft slip ring on our machinery?

Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.





CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.



Honor

ISO9001,CE,RoHS,UL,Explosion-proof



Service CENO provides

Solution offerring for 360° rotation system.

Mass and customized production.

24 hours,7days consultant service.



Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
