Detailed Product Description
Current: 13*20A,12*15A,16*10A,10*10A Rating Voltage: 380VAC/220VAC/24VDC
Electrical Noise: ≤15mΩ(50rpm) Working Speed: 0~150rpm
Through Bore Size: 60mm Operating Temperature: -20~+80℃
High Light:

miniature through bore slip ring

,

thermocouple slip ring

,

CE through hole slip rings

-20 to 80℃ Operating Temperature  Through Hole Slip Rings  Low Electrical Noise





Through hole slip rings .The main feature is the clear inner diameter through the center of the assembly allowing for the passage of fiber optics, air, fluid lines, optical paths or any other device that is required in the structure. The use of contact material using precious metals, torque is small, stable operation, long life, small resistance fluctuations, It can work on high temperature 80℃ and very low temperature -20℃.









Applications

  • Radar antenna ,motion simulator
  • Marine platform
  • metal casting production equipment


Optional

  • Through hole size
  • Circuit number
  • Installation way
  • IP protection grade



Features

  • Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
  • Low friction, long life,Low torque, smooth rotation
  • Transmit data and analog signal,compatible with data bus protocol




Parameter

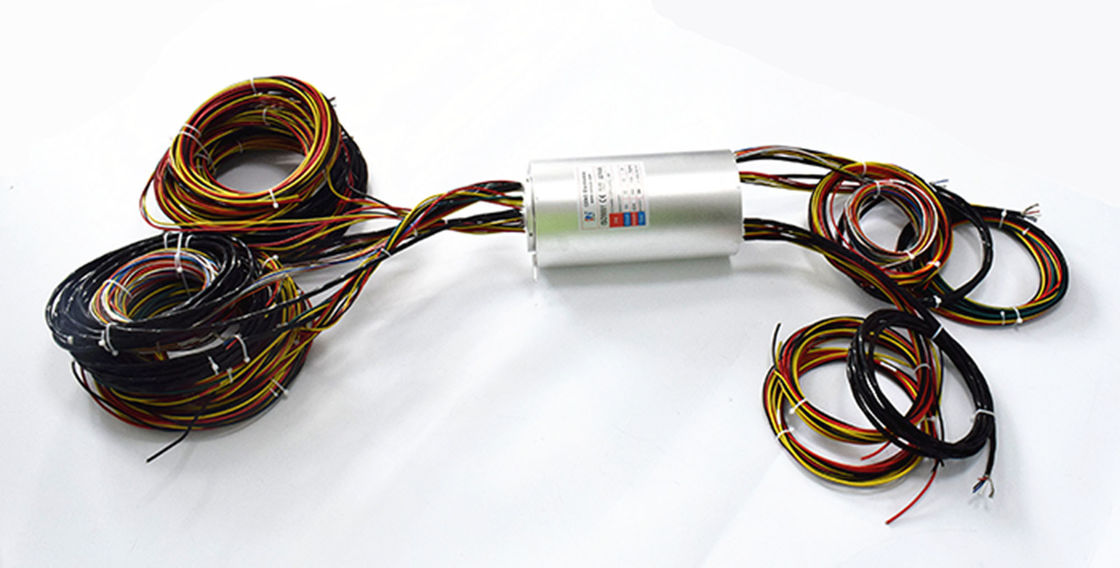

ECN060-12P3-26P2-13P   Specification Picture
Current 13*20A,12*15A,16*10A,10*10A Stable Operation Through Hole Slip Rings 0~150rpm Speed Low Electrical Noise 0
Voltage 380VAC/220VAC/24VDC
Electrical noise ≤15mΩ(50rpm)
Dielectric strength

≥1500V@50Hz(power)

≥500V@50Hz(signal)

Insulation resistance

500MΩ@500VDC(power)

100MΩ@100VDC(signal)

Operating speed 0-150 rpm
Contact material Precious metals
Operating temperature -20~+80℃
Through bore size 60mm
IP protection grade IP54







Outline drawing
Stable Operation Through Hole Slip Rings 0~150rpm Speed Low Electrical Noise 1







Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.

Q: How do we mount the hollow shaft slip ring on our machinery?

Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.





CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.



Honor

ISO9001,CE,RoHS,UL,Explosion-proof



Service CENO provides

Solution offerring for 360° rotation system.

Mass and customized production.

24 hours,7days consultant service.



Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
