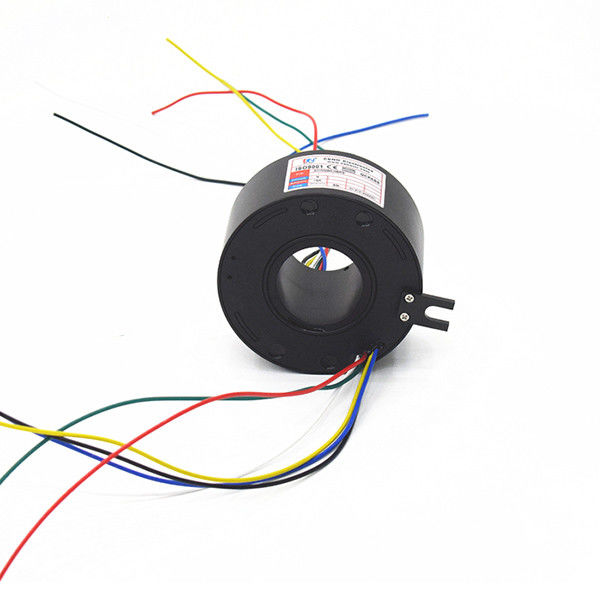

Compact Size Through Hole Slip Ring , Hollow Shaft Rotary Electrical Interface
  • Compact Size Through Hole Slip Ring , Hollow Shaft Rotary Electrical Interface

Compact Size Through Hole Slip Ring , Hollow Shaft Rotary Electrical Interface

Place of Origin China
Brand Name CENO
Certification CE,RoHS,UL,ISO9001
Model Number ECN050-06P3
Product Details
Current:
6*15A
Voltage:
380VAC
Protection Grade:
IP54
Rotation Speed:
0-300 Rpm
Electrical Noise:
≤70mΩ(50rpm)
Insulation Resistance:
500MΩ@500VDC
High Light:

miniature through bore slip ring

,

thermocouple slip ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/Crate
Delivery Time
Off the shelf
Payment Terms
T/T,Paypal,Western Union
Supply Ability
5000pcs month
Product Description









Hollow Shaft Rotary Electrical Interface Compact Size



The through bore slip ring with bore size 50mm,simply transmit current, but the through hole also can be used to mount the slip ring on a bracket or used for routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints of many channels,also,it can integrate high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges.







Specification



ECN050-06P3
Current 6*15A
Voltage 380VAC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance 500MΩ@500VDC
Operating speed 0-300 rpm
Contact material precious metals
Operating temperature -20~+60℃
Through bore size 50mm
IP protection grade IP54







Optional

  • Through hole size
  • Circuit number
  • Current rating
  • Installation way
  • IP protection grade





Feature

  • Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
  •  Low friction, long life,low torque, smooth rotation
  • Transmit data and analog signal,compatible with data bus protocol





Typical application



  •  Radar antenna
  • Construction engineering
  • Package equipment
  • Lithium battery equipment



Outline drawing



Compact Size Through Hole Slip Ring , Hollow Shaft Rotary Electrical Interface 0









Reduce costs
Improve manufacturing efficiency. You asked, we delivered.CENO Electronics offers high-performance 360° rotation solutions,
refined over years of helping customers with thousands of system designs in hundreds of industries.



How do you determine which is best for you?
Step one: Reference our slip ring products parameter chart, a matrix showing the key performance for CENO's products.
Keep in mind that if you don’t see the device needed for your project, we can work together on a derivative or a full custom device to fit your needs.
Step two: Fill out the custom form with necessary specification info, so we will be able to provide an evaluation solution, quote or more information on how we can make required slip ring easier.







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.





Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
