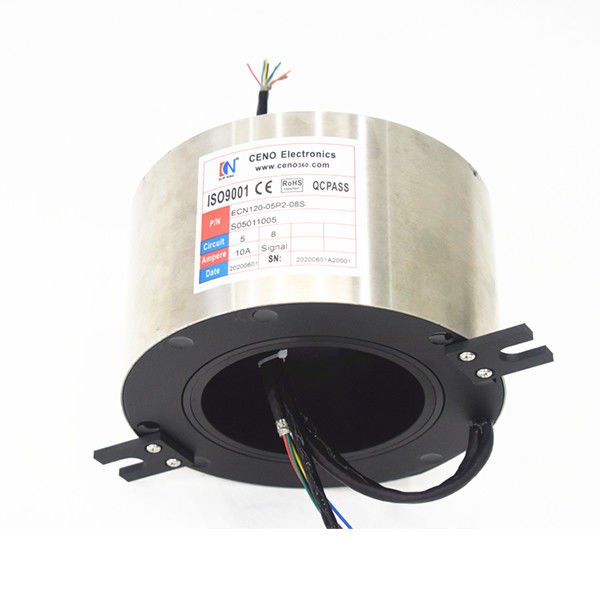

ID 120mm Slip Ring Commutator Low Torque

The big through-hole slip ring produced by CENO, fully meets the 360-degree infinite rotation of power supply, control and digital signal transmission; the through-hole conductive slip ring uses advanced fiber brush technology, which is maintenance-free and requires no lubricant; multi-point contact per channel, low contact pressure and wear, low noise, long service life; standardized, modular design, complete product specifications, and can customize products for customers

Specification

Applications

• Rotary table
• Construction engineering
• Package equipment
• Medical equipment

Features

• Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
• Low friction, long life,low torque, smooth rotation
• Transmit data and analog signal,compatible with data bus protocol

Optional

• Through hole size
• Circuit number
• Current rating
• Working speed

Outline Drawing


Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.

Q: How do we mount the hollow shaft slip ring on our machinery?

Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel in the anti-rotation tab.

Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel in the anti-rotation tab.
