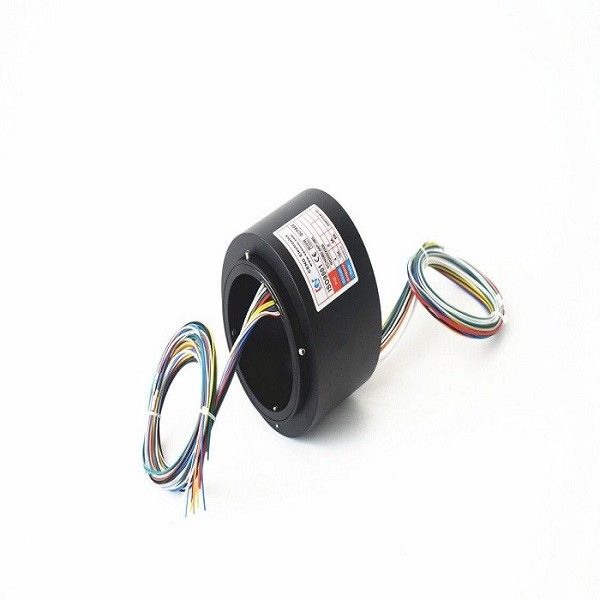

0~380VAC 60rpm Hollow Shaft 80mm Through Bore Slip Ring

0~380VAC 60rpm Hollow Shaft 80mm Through Bore Slip Ring

  • 0~380VAC 60rpm Hollow Shaft 80mm Through Bore Slip Ring
0~380VAC 60rpm Hollow Shaft 80mm Through Bore Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN080-04P-08S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 4*10A,8*5A Through Bore Size: 80mm
Protection Grade: IP54 Working Speed: 0~60rpm
Contact Material: Precious Metal Rating Voltage: 0~380VAC/VDC
High Light:

80mm Through Bore Slip Ring


60rpm Through Bore Slip Ring


Hollow Shaft Electrical Slip Ring


ECN080-04P-08S Through hole Slip Ring


Through hole slip ring also called hollow shaft,this type with through bore 80mm .including 4*10A,8*5A ,rating voltage 0~380VAC/VDC,Contact materials is precious metal.working temperature -45°C ~ +65°C. Typical application including Radar system,Marine industrial equipment,Medical equipment.Through hole size, current rating and other parameters can be optional.





Rings 4*10A,8*5A
Voltage 0~380VAC/VDC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength ≥500V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-60 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP54
Through hole size 80mm





  • No package loss,no cross talk,low loss
  • Low friction, long life,low torque, smooth rotation
  • Anti-rotation tab for fixing stator side ,easy to install





  • Radar system
  • Marine industrial
  • Automation equipment





  • Through hole size
  • Current rating
  • Signal type
  • IP protection grade


Outline Drawing


0~380VAC 60rpm Hollow Shaft 80mm Through Bore Slip Ring 0




Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring




Single channel fiber optic rotary joint 6.8mm OD stainless steel


CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
