| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN017-09P2-12S-01EG |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current: | 9 *10A,8*signal,2*RS422,1*Cat5e | Through Bore Size: | 17 |
|---|---|---|---|
| Protection Grade: | IP54 | Working Speed: | 0~150rpm |
| Contact Material: | Gold-gold | Rating Voltage: | 0~240VAC/VDC |
| High Light: | 150rpm Through Hole Slip Ring,IP54 Through Hole Slip Ring,17mm High Speed Slip Ring |
||

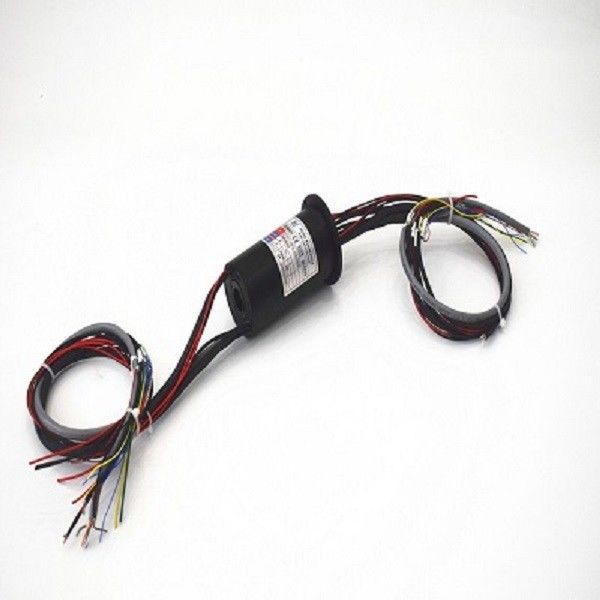

ECN017-09P2-12S-01EG
This is a through hole slip ring with Multi-Channel.through hole size is 17mm .Small size,light weight,convenient to integrate with power slip ring.Contact materials is Gold-gold.working temperature -55°C ~ +80°C. Typical application including Radar system,Marine industrial equipment,Medical equipment.
Specification
| Rings | 9 *10A,8*signal,2*RS422,1*Cat5e |
| Voltage | 0~240VAC/VDC |
| Electrical noise | ≤30mΩ(50rpm) |
| Dielectric strength |
≥1000V@50Hz(power) ≥500V@50Hz(signal) |
| Insulation resistance |
≥500MΩ@500VDC(power) ≥100MΩ@100VDC(signal) |
| Operating speed | 0-150 rpm |
| Contact material | Gold to gold |
| Housing material | Aluminium alloy sandblasted black oxide |
| IP protection grade | IP54 |
| Through hole size | 17mm |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
