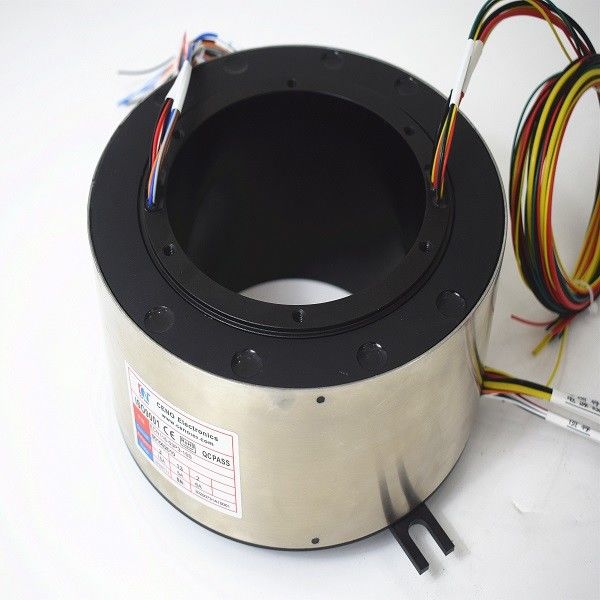

Large inner diameter slip ring with ID 115mm
This is a large inner diameter slip ring that with ID 115mm.CENO Electronics hollow shaft slip ring hole size from 3mm to 5000mm are optional.this slip ring including 3 rings of 15A,13 rings of 5A,2 rings of 6A. This series product could integrate various signal,such as USB,Ethernet ,CANBUS,Encoder,HDMI and etc. Typical application including Radar system,Marine industrial equipment,Medical equipment.
Specification
| Rings |
3*15A,13*5A,2*6A |
| Voltage |
0~220VAC/VDC |
| Electrical noise |
≤30mΩ(50rpm) |
| Dielectric strength |
≥500V@50Hz |
| Insulation resistance |
≥500MΩ@500VDC |
| Operating speed |
0-60 rpm |
| Contact material |
Precious metal |
| Housing material |
Aluminium alloy & stainless steel |
| IP protection grade |
IP51 |
| Through hole size |
115 mm |
Features
- No package loss,no cross talk,low loss
- Low friction, long life,low torque, smooth rotation
- Anti-rotation tab for fixing stator side ,easy to install
Applications
- Robot arm
- Industrial robot
- Motion simulator
- Automation equipment
Optional
- Through hole size
- Current rating
- Signal type
- IP protection grade
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
