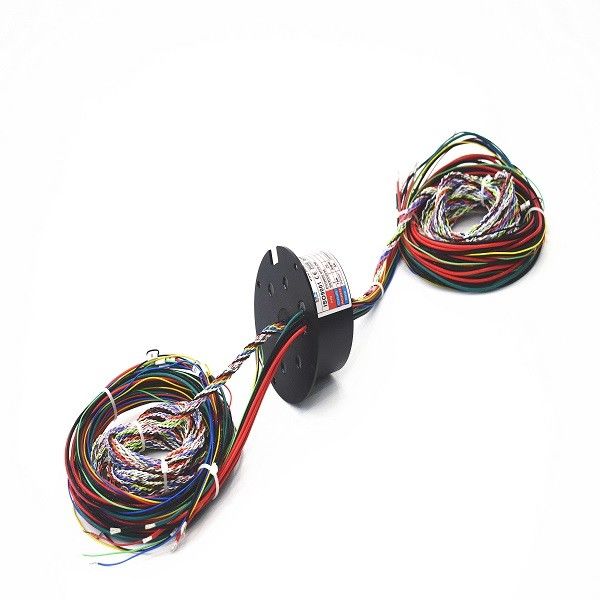

Gold To Gold IP54 300rpm Flexible Capsule Slip Rings

Gold To Gold IP54 300rpm Flexible Capsule Slip Rings

  • Gold To Gold IP54 300rpm Flexible Capsule Slip Rings
Gold To Gold IP54 300rpm Flexible Capsule Slip Rings
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN000-07P3-29S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 24*signal Protection Grade: IP54
Working Speed: 0~300rpm Contact Material: Gold To Gold
Rating Voltage: 0~220VAC/VDC
High Light:

300rpm Capsule Slip Rings


IP54 Capsule Slip Rings


Hollow Shaft Rotary Slip Ring

Gold to gold 24 rings of signal slip ring



CENO's capsule slip rings have flexible spec options to fulfill the various and complex requirement of systems.Ring number are range from 2 rings up to 200 rings.Power and signal are easily to be integrated into one slip rings under our years of proven technique.Outstanding signal types are Ethernet,Canbus,Profibus,RS,HDMI,HD-SDI,USB and so on. Typical outside diameters including 5.5mm,12.4mm,22mm.





Rings 24*signal
Voltage 0~220VAC/VDC
Electrical noise ≤35mΩ
Dielectric strength ≥500V@50Hz
Insulation resistance ≥50MΩ@500VDC
Operating speed 0-300rpm
Contact material Gold to gold
Housing material Aluminium alloy
IP protection grade IP54




  • Compact size.
  • Adopt military grade surface treatment,gold to gold contacts
  • Transmit data and analog signal,compatible with bus protocol



  • Radar system
  • Military equipment
  • Medical equipment



  • Circuit number
  • Current rating
  • Signal type
  • IP protection grade


Gold To Gold IP54 300rpm Flexible Capsule Slip Rings 0






Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring




Single channel fiber optic rotary joint 6.8mm OD stainless steel


CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
