| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN060-24P1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuits: | 24*5A | Through Bore Size: | 60mm |
|---|---|---|---|
| Protection Grade: | IP54 | Working Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Rating Voltage: | 0~380VAC/VDC |
| High Light: | 300rpm Through Hole Slip Ring,ECN060-24P1 Through Hole Slip Ring,60mm Waterproof Slip Ring |
||

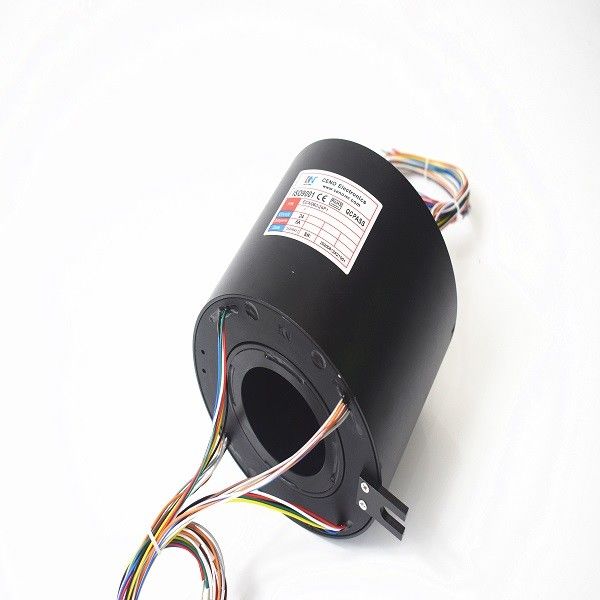

ECN060-24P1 through hole size 60 mm ,24*5A
CENO's hollow shaft slip ring hole size from 3mm to 5000mm are optional.Standard through hole size are 12.7mm, 25.4mm, 38.1mm, 50mm, 60mm,70mm, 80mm, 100mm .and all other size are capable to be customized.Various signal such as Ethernet,USB,HDMI,SDI,Canbus profibus and power are capable to be integrated into one slip rings .
Specification
| ECN060-24P1 | |
| Rings | 24*5A |
| Voltage | 0~380VDC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Through hole size | 60 mm |
Features
Applications
Optional
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
Contact Person: Lam
Tel: +8615767660191
