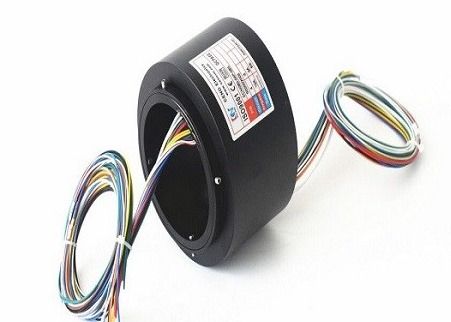

Low Electric Noise 60rpm 80mm Through Hole Slip Ring

Low Electric Noise 60rpm 80mm Through Hole Slip Ring

The center hole is available from 0 to 1000mm,transmit power & signal

through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints).CENO can design this type with hole size from 3mm to 5000mm are optional.Various signal such as Ethernet,USB,HDMI,SDI,Canbus profibus and power are capable to be integrated into one slip rings.

Feature Of Through Hole Slip Ring

Transmit power and signal

The power and signal are mixed transmitted, and the signal categories are as follows:

Ethernet: Rate (10Mbps/100Mbps/1000Mbps)

Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.

HD video: SDI, LVDS, etc.

Serial communication: RS232, RS485, RS422, etc.

Universal Serial Bus: USB2.0

Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.

Sensor signal: thermal resistance, thermocouple, strain gauge, etc.

Long service life, maintenance-free

Easy to install

Specification of ECN080-04P-08S

Advantages

• Very low electric noise
• Anti-jamming ,very low cost
• Very low contact resistance (Less than 1mΩ)
• No maintenance and better reliability than traditional sling rings

Applications

• Medical equipment
• Wind power equipment
• Test equipment
• Display equipment
• Turntable equipment
• Amusement equipment
• High-speed railway equipment
• Ship offshore equipment
• Construction machinery

Optional

• Circuit number
• Current rating
• Signal type
• IP protection grade

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

Outline drawing

Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
