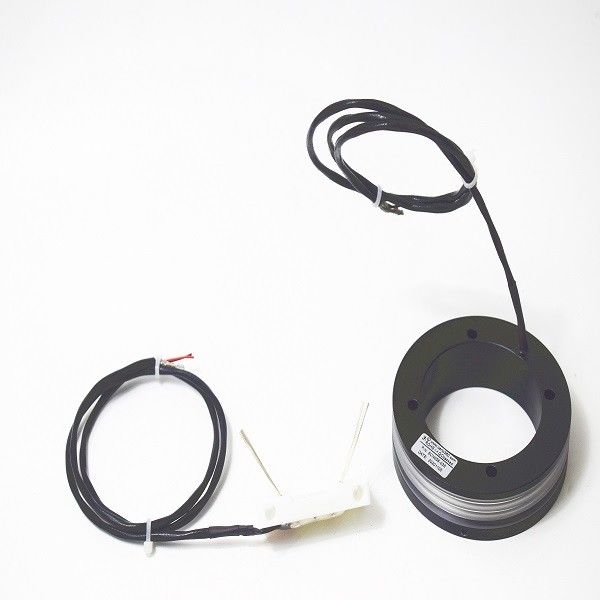

CCTV Two Half Style 200Rpm 56mm Separate Slip Rings

CCTV Two Half Style 200Rpm 56mm Separate Slip Rings

  • CCTV Two Half Style 200Rpm 56mm Separate Slip Rings
  • CCTV Two Half Style 200Rpm 56mm Separate Slip Rings
  • CCTV Two Half Style 200Rpm 56mm Separate Slip Rings
CCTV Two Half Style 200Rpm 56mm Separate Slip Rings
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: SCN056-03S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 1*485 Signal Through Bore Size: 56 Mm
Protection Grade: IP00 Working Speed: 0~200rpm
Contact Material: Precious Metal Rating Voltage: 220VAC
Housing Material: Aluminium Alloy Electrical Noise: ≤30mΩ(50rpm)
Application: Exhibit Display Equipment
High Light:

56mm Separate Slip Rings

,

200Rpm Separate Slip Rings

,

200Rpm Two Half Style Slip Rings

CCTV Two Half Style 200Rpm 56mm Separate Slip Rings



ID 56mm two half style slip ring with aluminium alloy housing ,working speed 0-200 rpm,suitable for small space like CCTV pan




SCN series refers to a family of two half style slip ring ,also named separate slip rings. It's a derivation from an independent unit that can transmit current, data signal from stationary to rotating part. The slip ring (rotor) and brush block (stator) are offered as separate components to be mated by the customer in their system. The through bore is 56mm,with one group 485 signal .working speed is 0~200 rpm .Application like electrical test equipment ,manufacturing and process control equipment,indexing tables,CCTV pan,and marine engineering equipment.Other special requirements please contact with CENO www.ceno360.com.




Specification


SCN056-03S Specification
Rings 1*485 signal
Voltage 0~220VAC
Dielectric strength ≥300V@50Hz
Insulation resistance ≥100MΩ@100VDC
Working temperature -20°C~ +60°C
Contact material Precious metal
Working speed 0~200 rpm
Through hole size 56 mm
Protection grade IP00
Housing material Aluminium alloy





Features



  • Hollow shaft installation
  • Through bore 56mm
  • Long service life
  • Anti-jamming ,very low cost
  • Suitable for small space
  • Connecting way optional
  • Easy to install,low electrical noise
  • Low torque, smooth rotation
  • Power & signal can be combined




Applications



  • Indexing tables
  • CCTV pan
  • Exhibit display equipment .
  • Custom Machinery
  • Electrical test equipment
  • Marine engineering equipment
  • Ferris wheel
  • Industrial application





Optional



  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material
  • Flexible customization




Outline Drawing
