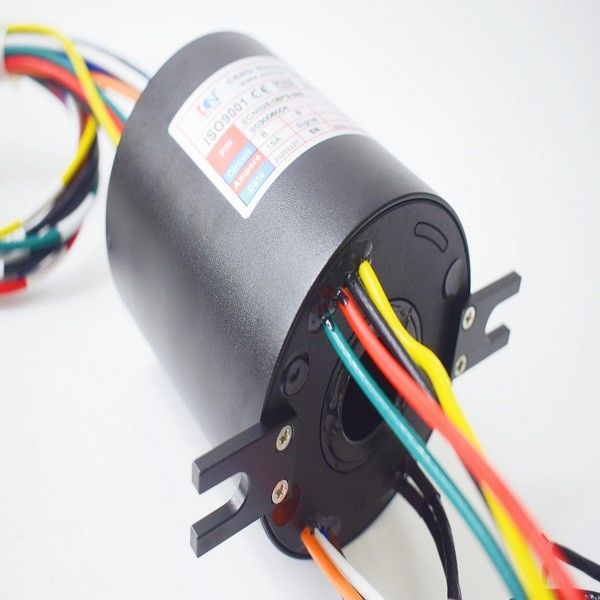

Military Industry IP54 25.4 Mm Through Bore Slip Ring

Military Industry IP54 25.4 Mm Through Bore Slip Ring

  • Military Industry IP54 25.4 Mm Through Bore Slip Ring
  • Military Industry IP54 25.4 Mm Through Bore Slip Ring
  • Military Industry IP54 25.4 Mm Through Bore Slip Ring
Military Industry IP54 25.4 Mm Through Bore Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN025-08P3-08S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 8*15A,8*signal Through Bore Size: 25.4 Mm
Protection Grade: IP54 Working Speed: 0~300rpm
Contact Material: Precious Metal Rating Voltage: 0~380VAC
Housing Material: Aluminium Alloy Working Temperature: -40C°~ +80C°
Application: Warpping Machine ,CT Scan
High Light:

25.4Mm Through Bore Slip Ring

,

25.4Mm Military Industry Slip Ring

,

IP54 Military Industry Slip Ring

Military Industry IP54 25.4 Mm Through Bore Slip Ring



ECN Series slip rings feature a 25.4 mm through bore,Aluminium housing,used for robot arms and military industry.




The ECN Series electrical through bore slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets. ECN Series slip rings feature a 25.4 mm through bore for shaft mounting and incorporate low-wear, fiber brush contacts that do not require lubrication producing virtually no wear debris. Standard models are available from 6 to 24 circuits. We can provide you with professional design solutions according to the number of wires, current, voltage, signal type, wire length, installation size, rotation speed, working temperature, protection level, etc. , available .




Specification


ECN025-08P3-08S Specification
Circuits & Current 8*15A,8*signal
Voltage 0~380VAC
Electrical noise Max 30mΩ (50rpm)
Dielectric strength

≥1000V@50Hz (power)

≥500V@50Hz (signal)

Insulation resistance

500MΩ@500VDC (power)

100MΩ@100VDC (signal)

Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium housing
IP protection grade IP54
Through hole size 25.4 mm
Working temperature -40C°~ +80C°





Features



  • Hollow shaft installation
  • Through bore 25.4mm
  • Long service life
  • Anti-jamming ,very low cost
  • Precious contacts
  • Compact structure
  • Stable reliable performance
  • Low torque, low noise
  • Power integrate signal




Applications



  • Ship offshore equipment
  • Beer machine
  • Canned equipment
  • Wrapping machines
  • Oil and drilling platform
  • Food industry
  • CT scan
  • Robot arms
  • Medical machine
  • Military industry





Optional



  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material
  • Cable length




Outline Drawing



Military Industry IP54 25.4 Mm Through Bore Slip Ring 0





Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
