Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire
  • Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire
  • Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire
  • Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire

Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN-C-300-06P-08S
Product Details
Current:
8*signal,6*15A
Through Bore Size:
300 Mm
Protection Grade:
IP54
Working Speed:
2~8 Rpm
Contact Material:
Copper Graphite
Rating Voltage:
0~220VAC/VDC
Housing Material:
Aluminium Alloy & Stainless Steel
Working Temperature:
-20C°~ +60C°
Application:
Packaging Machine,Medical Machine
Highlight:

300mm Through Hole Slip Ring

,

300mm Hollow Shaft Slip Ring

,

220VAC 6 Wire Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description

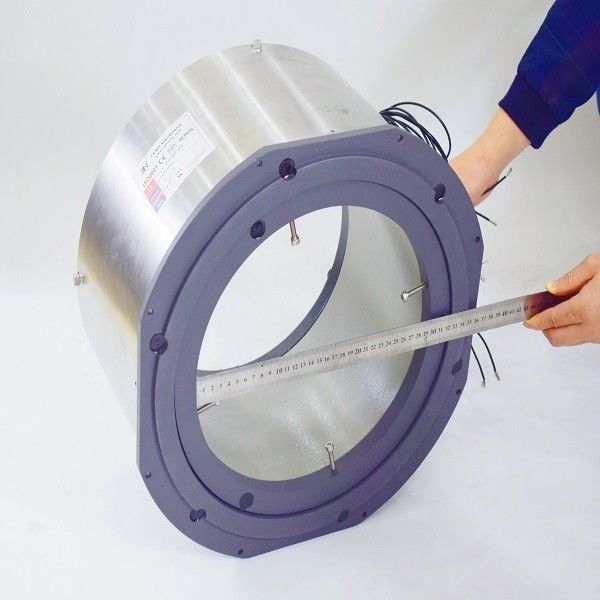

Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire



Large hollow shaft slip ring with 300 mm bore,6 wires for signal and 8 lines for power current,stainless steel housing.





This is a large hollow shaft slip ring with 300mm inner bore size ,the through hole size can be optional according to different requests.Housing material is aluminium alloy & stainless steel,contacts material is copper graphite,it’s different from the normal power slip ring with more stable transmission and long life time .Three blocks connect rotor and stator for avoiding slip ring rotate during break time.The damage prone components of the new unit adopt scientific modular design,which allows ease of taking apart or installation without requiring disassembling its housing,quick and convenient replacement of internal parts is conducive to prolonging its service life.



                                Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire 0




Specification





ECN-C-300-06P-08S Specification
Circuits 8*signal,6*15A
Voltage 0~220VAC/VDC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength ≥500V@50Hz
Insulation resistance ≥100MΩ@100VDC
Operating speed 2~8 rpm
Contact material Copper graphite
Housing material Aluminium alloy & stainless steel
IP protection grade IP54
Through hole size 300 mm





Features



  • Anti-corrosion,moisture
  • Easy maintenance
  • Long life time
  • 300mm through bore size


Applications



  • Beer machine
  • Canned equipment
  • Marine & craneu
  • For offshore equipment
  • Seaport machine
  • Oil drilling platform
  • Port machinery
  • Wind power system





Optional



  • Through hole size
  • Various signal integrate
  • Circuits number
  • IP protection grade
  • Cable length








Outline Drawing



Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire 1







Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire 2



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire 3



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
