Place of Origin: | China |
Brand Name: | CENO |
Certification: | CE,RoHS,ISO9001,UL |
Model Number: | ECN115-06P3-19S-01EM |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton/As request |
Delivery Time: | 1 week |
Payment Terms: | T/T,Paypal, Western Union |
Supply Ability: | 500pcs per month |
Current: | 6*15A,17*5A,2*6A,1*100M Ethernet | Through Bore Size: | 115 Mm |
---|---|---|---|
Protection Grade: | IP51 | Working Speed: | 0~60rpm |
Contact Material: | Precious Metal | Rating Voltage: | 0-220VAC/VDC |
Housing Material: | Aluminium Alloy & Stainless Steel | Working Temperature: | -20C°~ +80C° |
Application: | Industry Equipment,wind Power System | ||
High Light: | 115mm Through Hole Slip Ring,Stainless Steel Through Hole Slip Ring,RoHS Stainless Steel Slip Ring |

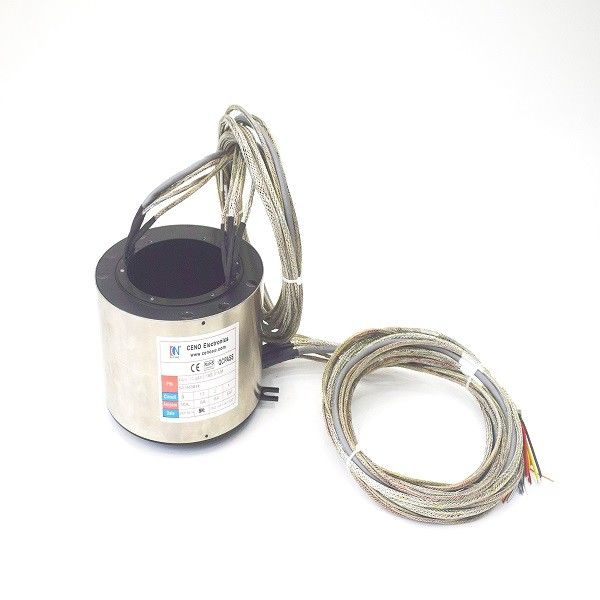

Stainless Steel 115mm Through Hole Slip Ring Transmit 100M Ethernet
Inner bore 115mm large size slip ring transmit 100M Ethernet,with aluminum alloy & stainless steel housing,60 rpm speed.
CENO ECN series are through-bore slip rings,the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, wave guide, gas and liquid and other joints. The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 980mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.communication systems.Please contact with CENO if you have any special requirements about slip ring.ECN115-06P3-19S-01EM with large inner bore 115mm.Integrated 25 rings of current rating and 1 group 100M Ethernet signal .CENO slip rings with compact size, stable electrical and signal performance, low friction and torque, thicker precious metal plate, longer life.Can be apply for automatic machines which require rotating transfer electric/signal/gas/liquid, solve wire winding problems.
Specification
ECN115-06P3-19S-01EM | Specification |
Circuits & Current | 6*15A,17*5A,2*6A,1*100M Ethernet |
Voltage | 0~220VAC/VDC |
Dielectric strength |
≥500V@50Hz (power) ≥300V@50Hz (signal) |
Insulation resistance |
≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) |
Electrical noise | ≤30mΩ (50 rpm) |
Operating speed | 0-60 rpm |
Contact material | Precious metal |
Housing material | Aluminum alloy & stainless steel |
IP grade | IP51 |
Inner hole size | 115 mm |
Working temperature | -20°C~ +80°C |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
