| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN038-04P2-13S-JZ |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current: | 4*10A,12*TL Signal,2*PE | Through Bore Size: | 38.1 Mm |
|---|---|---|---|
| Protection Grade: | IP54 | Working Speed: | 0~50rpm |
| Rating Voltage: | 24VDC | Contact Material: | Precious Metal |
| Housing Material: | Aluminium Alloy | Working Temperature: | -55C°~ +70C° |
| Outer Diameter: | 80 Mm | ||
| High Light: | 38.1mm Rotary Joint Slip Ring,24VDC Rotary Joint Slip Ring,24VDC through bore slip ring |
||

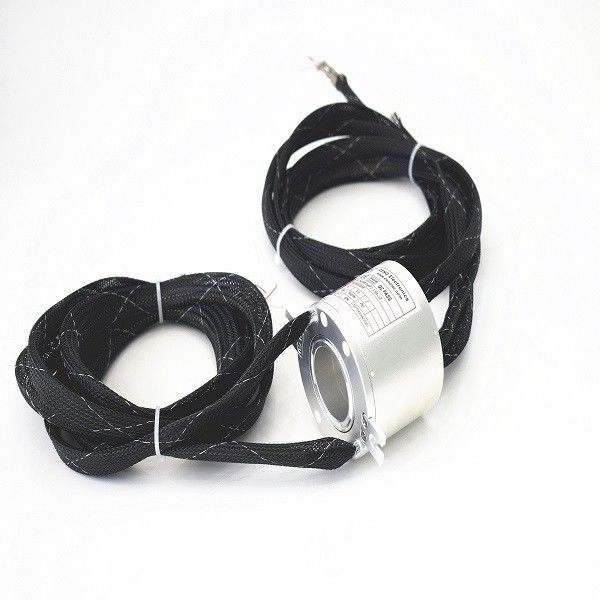

24VDC 38.1mm Inner Bore Rotary Joint Slip Ring With Transfer Power
Long life time rotary joint slip ring with 38.1mm inner bore,transfer power & signal,with black aluminium housing
Slip rings enable the transfer of electric power or signal across a rotating part, such as those found in radar antennae, gun turrets, periscopes, electro-optic sensor gimbals and space satellites. The sliding contact is established by a brush that presses against a metal ring. The brush looks like a brush made from metal fibers, but more often it looks like a single wire or a spring with a pad of material affixed to the end that contacts the ring. This ECN038 slip ring with through bore size 38.1 mm, it can combine with power. signal.Ethernet,USB,Control Net.CANBUS. PROFIBUS. It could also be mounted by shaft or optional flange mounting.Typical application including measurement instruments,packaging machine ,medical equipment etc.The inner bore size can be choose from 3mm to 980mm ,CENO also can meet different requirements for customer’s demand .
Specification
| ECN038-04P2-13S-JZ | Specification |
| Circuits & Current | 4*10A,12*TL signal,2*PE |
| Voltage | 24 VDC |
| Electrical noise | Max 70mΩ (50rpm) |
| Dielectric strength | ≥500V@50Hz |
| Insulation resistance |
≥500MΩ@500VDC (power) ≥300MΩ@500VDC (signal) |
| Operating speed | 0-50 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Working temperature | -55°C ~ +70°C |
| Through bore size | 38.1mm |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
