| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN055-03P3-12S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current: | 3*15A,12*5A (signal) | Through Bore Size: | 55 Mm |
|---|---|---|---|
| Protection Grade: | IP54 | Working Speed: | 0~50rpm |
| Contact Material: | Precious Metal | Rating Voltage: | 240VDC |
| Housing Material: | Aluminium Alloy | Working Temperature: | -40C°~ +70C° |
| Outer Diameter: | 55 Mm | ||
| High Light: | 55mm Through Hole Slip Ring,Precious Metal Through Hole Slip Ring,55mm hollow shaft slip ring |
||

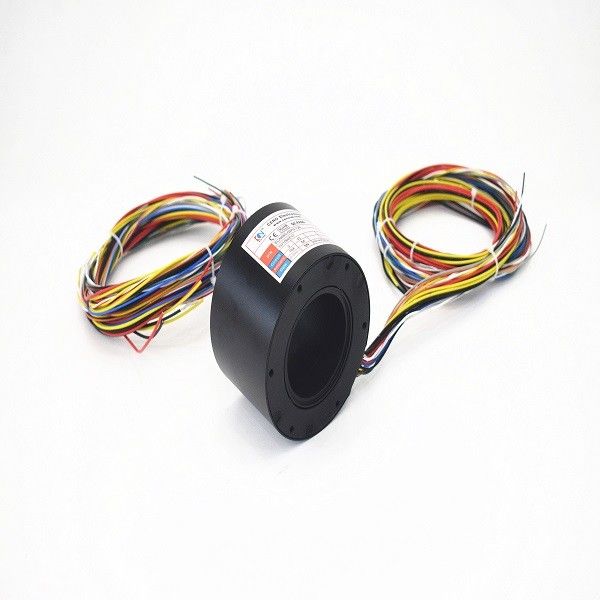

Precious Metal 55mm Through Hole Slip Ring Aluminium Alloy Housing
Compact inner structure through bore rotary joint slip ring with 55mm inner bore,outer diameter 99mm,aluminium housing
Slip rings of the ECN series have the characteristics of precious metal contact and a long service life up to 230 million turns. Furthermore, they are water-proof, pressure-proof, and vibration resistant. Customizable lead wires and connectors support any plug-in including flying lead.The through bore can be used to routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints, high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges.ECN055-03P3-12S is a customized through bore slip ring with 55mm inner bore. ECN series is a family of robust through bore slip rings, with a central hole up to φ980mm, designed and manufactured by CENO with patented technology.
CENO also can meet different requirements for customer’s demand .
Specification
| ECN055-03P3-12S | Specification |
| Circuits & Current | 3*15A,12*5A (signal) |
| Electrical noise | Max 10mΩ |
| Dielectric strength |
≥1000V@50Hz (power) ≥500V@50Hz (signal) |
| Insulation resistance |
≥500MΩ@1000VDC (power) ≥200MΩ@500VDC (signal) |
| Operating speed | 0-50 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Working temperature | -40°C ~ +70°C |
| Through bore size | 55 mm |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
