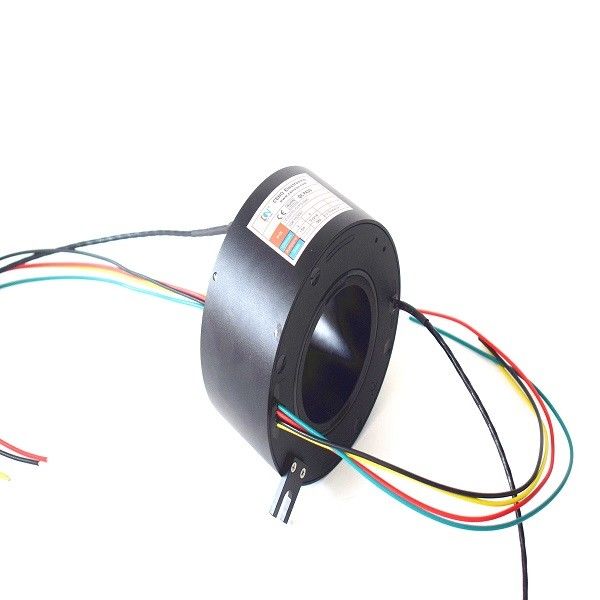

Waterproof 380V 70mm Through Bore Slip Ring For Packaging Machine

Waterproof 380V 70mm Through Bore Slip Ring For Packaging Machine

  • Waterproof 380V 70mm Through Bore Slip Ring For Packaging Machine
  • Waterproof 380V 70mm Through Bore Slip Ring For Packaging Machine
Waterproof 380V 70mm Through Bore Slip Ring For Packaging Machine
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN070-04P3-04S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 4*15A,1*Canbus (signal) Through Bore Size: 70 Mm
Protection Grade: IP51 Working Speed: 0~50rpm
Contact Material: Precious Metal Rating Voltage: 380VDC
Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
Outer Diameter: 135 Mm
High Light:

70mm Through Bore Slip Ring

,

380V Through Bore Slip Ring

,

Waterproof Rotary Joint Slip Ring

Waterproof 380V 70mm Through Bore Slip Ring For Packaging Machine



Through bore slip ring motor with 70mm inner bore,380V voltage used for packaging machine,stable transimission





Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform.It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside port rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding. ECN070-04P3-04S is a through hole slip ring with 70mm inner diameter ,4 rings of 15A & 1 ring of Canbus signal.We not only provide products, but also provide solutions!According to different requirements for electrical, signal, data, gas and liquid rotary connection, as well as different power parameter requirements, we provide the best solution to save your time and cost.

Slip rings of the ECN series have the characteristics of precious metal contact and a long service life up to 230 million turns. Furthermore, they are water-proof, pressure-proof, and vibration resistant. Customizable lead wires and connectors support any plug-in including flying lead.




Specification





ECN070-04P3-04S Specification
Circuits & Current 4*15A,1*Canbus (signal)
Electrical noise Max 30mΩ
Dielectric strength

≥1500V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@100VDC (signal)

Operating speed 0-50 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP51
Working temperature -20°C ~ +60°C
Through bore size 70 mm








   Features



  • Integrate power & Canbus
  • Low-torque
  • Voltage 380VAC/VDC
  • Shaft mounting











Applications



  • Medical machine
  • Packaging machine
  • Radar antennas
  • Military industry
  • Robotics
  • Military industry






       Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material






Outline Drawing

 Waterproof 380V 70mm Through Bore Slip Ring For Packaging Machine 0
