| Place of Origin | China |
| Brand Name | CENO |
| Certification | CE,RoHS,ISO9001,UL |
| Model Number | ECN060-02P1-08S |

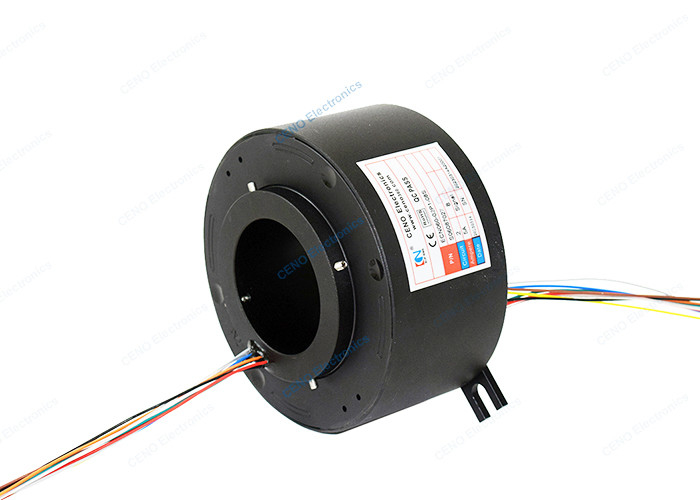

Through Hole Slip Ring With ID60mm Rotary Electrical Joint For Industry
ECN060-02P1-08S is CENO’s new through hole slip ring which combine 2 circuits for 5A and 8 circuits signal for industrial application. It’s also named through bore slip ring, hollow shaft slip ring, rotary electric joint or electrical collector. Widely used to various industry equipment, civilian & agricultural machinery, even defense and aerospace. Most of the parameter are optional, we have over than 5000 designs. For more information about how CENO’s slip ring can fit your specific applications, please contact us freely
Features
Applications
Optional
Specification
|
ECN060-02P1-08S |
Specification |
| Current & Circuits | 2 circuits * 5A, 8 circuits * Signal |
| Rating Voltage |
0~380VAC/VDC |
| Dielectric strength |
≥5000VAC@50Hz (Current) ≥300VAC@50Hz (Signal) |
| Isolation resistance |
≥500MΩ@500VDC (Current) ≥100MΩ@300VDC (Signal) |
| Operating speed | 0~100rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Lead wire size | AWG22#Wire Teflon®UL |
|
Lead wire length |
Rotor : 300mm Stator : 300mm |
| Inner diameter | Ø60mm |
| Installation way | Fix up stator side with anti-rotation side shaft drives rotor running |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
