Name: ID 127mm Through Hole Slip Ring With Rotating Connector Electrical Swivel
Brand: CENO
SKU: ECN127-10P1
Rating: 4.7 (166 reviews)

Home Products Through Hole Slip Ring

ID 127mm Through Hole Slip Ring With Rotating Connector Electrical Swivel

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,ISO9001,UL
Model Number:	ECN127-10P1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton/As request
Delivery Time:	1 week
Payment Terms:	T/T,Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Circuits & Current:	10 Circuits*5A	Rating Voltage:	0~115VAC/VDC
Dielectric Strength:	≥500VAC@50Hz	Isolation Resistance:	≥500MΩ@500VDC
Contact Resistance:	30mΩ (50rpm)	Contact Material:	Precious Metal
Housing Material:	Stainless Steel + Aluminum Alloy	Working Temperature:	-20°C~+60°C
Working Humidity:	60 %RH	IP Protection Grade:	IP51
Operating Speed:	0~350rpm	Lead Wire Size:	AW22# Wire Teflon® UL
Lead Wire Length:	Rotor : 1000mm Stator :1000mm	Inner Diameter:	Ø127mm
Rotation Way:	Fix Up Stator Side With Anti-rotation Side Shaft Drives Rotor Running
High Light:	ID 127mm Through Hole Slip Ring , Rotating Connector Through Hole Slip Ring , Packing machinery Through Hole Slip Ring

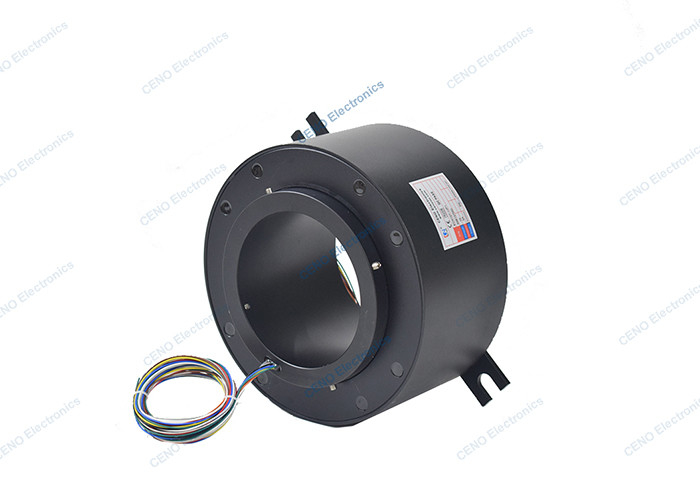

Through Hole Slip Ring With ID127mm Rotating Connector Electrical Swivel

ECN127-10P1 is CENO new design Hollow Shaft Slip Ring with ID127mm and 10circuits for 5 Electrical Power for industrial application. Hollow Shaft Slip Ring often called through hole slip ring, through bore slip ring or rotating connector electrical. We are a leading designer and manufacture of electrical slip ring systems for nearly 20 years and have around 5000 designs including many kinds slip ring. The hollow shaft slip ring as a basic slip ring it can be integrated RF, FORJ, Pneumatic/Hydraulic or Signals. For more information about what kinds slip ring suitable your specific applications, please contact us.

Features

Short Cycle & economical
Most parameters optional
Can be integrated various data
Install easily & transmit stably

Applications

Industrial automation system
Packing machinery
Electrical heavy crane
For harsh environment

Optional

Circuits,Voltage & Current
Contact / Housing Materials
Inner / External diameter
Working speed & humidity

Specification

ECN127-10P1	Specification
Current & Circuits	10 circuits*5A
Rating Voltage	0~115VAC/VDC
Dielectric strength	≥500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance	30mΩ (50rpm)
Contact material	Precious Metal
Housing material	Stainless steel + Aluminum Alloy
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~350rpm
Lead wire size	AW22# Wire Teflon® UL
Lead wire length	Rotor : 1000mm Stator :1000mm
Inner Diameter	Ø127mm
Rotation way	Fix up stator side with anti-rotation side shaft drives rotor running

Outline Drawing

ID 127mm Through Hole Slip Ring With Rotating Connector Electrical Swivel 0

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
