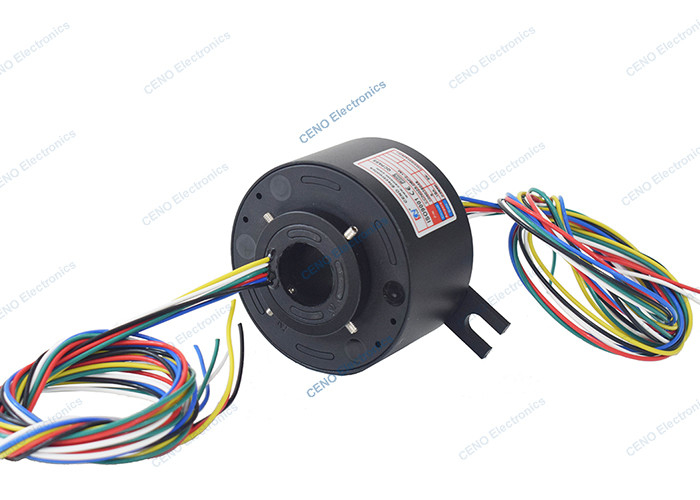

Standard Precious Through Hole Slip Ring With ID25mm For Industrial Automation
  • Standard Precious Through Hole Slip Ring With ID25mm For Industrial Automation
  • Standard Precious Through Hole Slip Ring With ID25mm For Industrial Automation
  • Standard Precious Through Hole Slip Ring With ID25mm For Industrial Automation
Standard Precious Through Hole Slip Ring With ID25mm For Industrial Automation

Standard Precious Through Hole Slip Ring With ID25mm For Industrial Automation

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN025-06P2-1M
Product Details
Circuits & Current:
6circuis*10A
Rating Voltage:
0~380VAC/VDC
Dielectric Strength:
≥1000VAC@50Hz
Isolation Resistance:
≥500MΩ@500VDC
Contact Resistance:
30mΩ (50rpm)
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy
Working Temperature:
-20°C~+60°C
Working Humidity:
60 %RH
IP Protection Grade:
IP51
Operating Speed:
0~300rpm
Lead Wire Size:
AW 17# Wire Teflon® UL
Lead Wire Length:
Rotor : 1000mm Stator :1000mm
Inner Diameter:
Ø25.4mm
External Diameter:
Ø86mm
Installation:
Fix Up Stator Side With Anti-rotation Side Shaft Drives Rotor Running
Highlight:

Precious Through Hole Slip Ring

,

Through Hole Slip Ring with ID25mm

,

Through Hole 380VAC Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description



Standard Through Hole Slip Ring with ID25mm For Industrial Automation System



ECN025-06P2-1M is CENO standard through hole slip ring with the lead wire length 1M for the industrial system. As a standard electrical collector it’s economical, short delivery time and can be integrated many kinds of data or signal as different applications. For it’s simple construction, smooth rotating and stable transmitting, often widely applied to the harsh or rug environments, such as the outdoors application, Mine, Offshore etc, For more information about CENO slip ring , please contact us any time.





Features

  • Economical
  • Simple construction
  • Can be integrated various data
  • Install easily & transmit stably
  • Short deliver time



Applications

  • Industrial system
  • Packing machine
  • Mine
  • Offshore
  • Wind turbine



Optional

  • Circuit, Voltage, Current
  • Signal types
  • Contact / Housing Materials
  • Protection grade
  • Working speed




Specification

ECN025-06P2-1M

 Specification
Current & Circuits 6circuis*10A
Rating Voltage 0~380VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Electrical Noise 30mΩ (50rpm)
Contact material Precious Metal
Housing material Aluminum Alloy
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0~300rpm
Lead wire size AWG17# Wire Teflon® UL
Lead wire length

Rotor : 1000mm

Stator : 1000mm
Inner Diameter Ø25.4mm
External diameter Ø86mm
Installation Fix up stator side with anti-rotation side shaft drives rotor running











Outline Drawing

Standard Precious Through Hole Slip Ring With ID25mm For Industrial Automation 0

















Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Standard Precious Through Hole Slip Ring With ID25mm For Industrial Automation 1







Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Standard Precious Through Hole Slip Ring With ID25mm For Industrial Automation 2

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
