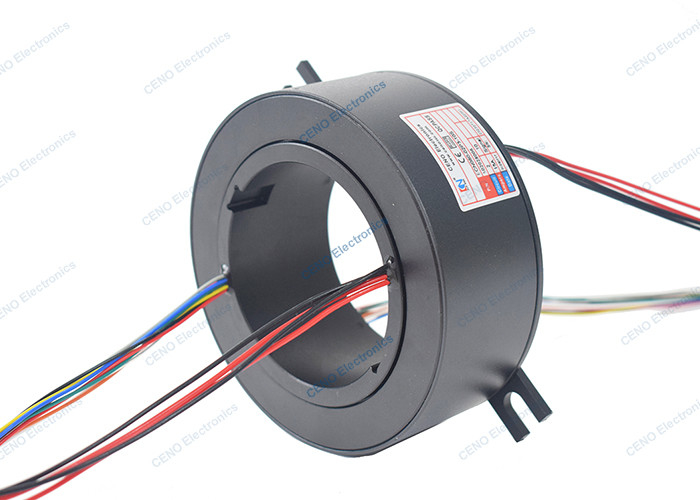

Name: 60rpm Through Hole Slip Ring With Rotary Electrical Signal Joint
Brand: CENO
SKU: ECN080-02P3-10S
Rating: 5 (174 reviews)

Home Products Through Hole Slip Ring

60rpm Through Hole Slip Ring With Rotary Electrical Signal Joint

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,ISO9001,UL
Model Number:	ECN080-02P3-10S

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton/As request
Delivery Time:	1 week
Payment Terms:	T/T,Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Circuits & Current:	215A; 10signal	Rating Voltage:	220VAC/VDC
Dielectric Strength:	≥1000VAC@50Hz; ≥300VAC@50Hz	Isolation Resistance:	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact Resistance:	30mΩ (50rpm)	Contact Material:	Precious Metal
Housing Material:	Aluminum Alloy	Working Temperature:	-40°C~+60°C
Working Humidity:	90%RH	IP Protection Grade:	IP51
Operating Speed:	0~60rpm	Lead Wire Size:	AWG17#22# Tin Coated Wire Teflon® UL
Lead Wire Length:	Rotor:500mm Stator:500mm	Inner Diameter:	Ø80mm
External Diameter:	Ø129.5mm	Installation:	Rotor Side Fixed Upon Guest Main Shaft With Screws
High Light:	60rpm through hole slip ring , aluminum alloy through hole slip ring , 60rpm electrical through hole slip ring

Function Low Temperature Through Hole Slip Ring with ID80 Rotary Electrical Signal Joint

ECN080-02P3-10S is a function low temperature slip ring with through hole inner diameter Ø80mm, which is designed for automatic equipment that works in the low temperature environment. It can continuous transmit electric power and signals from the stator side to the rotation side stably, and can be combined many kinds data, Optic fiber or RF signals as different customer applications, for more information about how CENO slip ring can fit your specific request please contact us freely.

Features

For low temperature application
Different sealing forms and boundary can be selected
Can be integrated various data
Install easily & transmit stably

Applications

Automatic machine
Packing machine
Offshore
Aircraft
Medical equipment

Optional

Circuit, Voltage, Current
Signal types
Contact / Housing Materials
IP Grade
Working speed

Specification

Current & Circuits	2circuits15A;10circuitsSignal
Rating Voltage	220 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave range	≤30mΩ (50rpm)
Contact material	Precious Metal
Housing material	Aluminum Alloy
Working temperature	-40°C~+80°C
Working humidity	≤90%RH
Protection Grade	IP51
Operating speed	0~ 60 rpm
Lead wire size	AWG 17# Tin coated Wire Teflon ® UL AWG 22# Tin coated Wire Teflon ® UL
Lead wire length	Rotor : 500mm; Stator : 500mm
Inner diameter	Ø80mm
External diameter	Ø129.5mm
Installation	Rotor side Key slot fixed

Outline Drawing

60rpm Through Hole Slip Ring With Rotary Electrical Signal Joint 0

The Low Temperature Slip Ring is an essential component that is commonly used in a range of industrial applications. This highly efficient and reliable slip ring is designed to provide uninterrupted power and signal transmission while rotating at high speed. Whether you are looking for a rotary electrical & signal joint or a function slip ring, the Low Temperature Slip Ring is the perfect solution for all your requirements.

One of the most remarkable features of this slip ring is its exceptional low-temperature performance. With a working temperature range of -40°C~+80°C, this slip ring can withstand extreme conditions, allowing it to function flawlessly in any environment. The through-hole slip ring with ID 80mm makes it easy to integrate into any equipment, while the rotating speed of 0~60rpm ensures maximum efficiency and reliability.

The Low Temperature Slip Ring is versatile and can be customized to meet specific needs in different applications. With its modular design, most parameters such as the current rating, voltage, and number of circuits can be tailored to suit the requirements of your particular application. Additionally, the slip ring can be designed to incorporate various types of signals such as Ethernet, CANBUS, and USB, which makes it an excellent solution for data and signal transmission.

Made with top-quality materials and advanced manufacturing techniques, this slip ring is built to last and is resistant to wear and tear. The materials used in construction also make it highly resistant to corrosion, which makes it ideal for use in harsh industrial environments. With its high precision and accuracy, the Low Temperature Slip Ring delivers reliable and consistent performance, ensuring that your operations run smoothly and efficiently.

To sum it up, the Low Temperature Slip Ring is an ideal solution for anyone who needs a reliable and efficient slip ring for their industrial applications. Whether you need a function slip ring or a rotary electrical & signal joint, this slip ring has everything you need for accurate and uninterrupted signal transmission. Contact us today to learn more about how the Low Temperature Slip Ring can help improve your operations.
