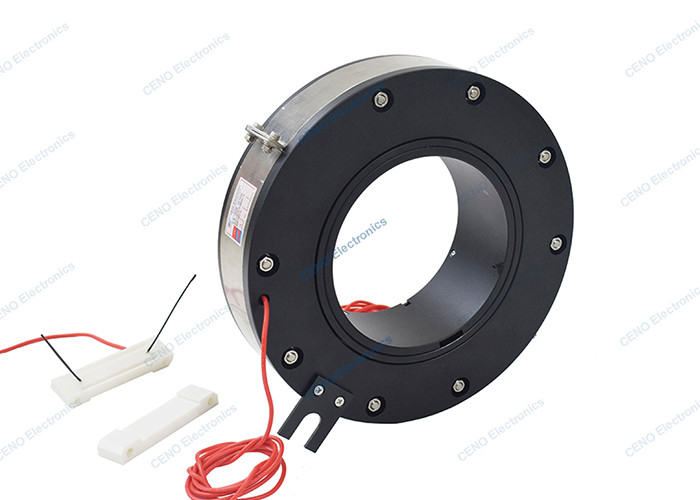

Through Hole Slip Ring with Inner bore 140mm For Amusement Equipment
  • Through Hole Slip Ring with Inner bore 140mm For Amusement Equipment
  • Through Hole Slip Ring with Inner bore 140mm For Amusement Equipment
  • Through Hole Slip Ring with Inner bore 140mm For Amusement Equipment
Through Hole Slip Ring with Inner bore 140mm For Amusement Equipment

Through Hole Slip Ring with Inner bore 140mm For Amusement Equipment

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN140-01P-3500V-S
Product Details
Current:
1 Circuit * 1A
Rating Voltage:
0~3500VDC
Dielectric Strength:
≥8000VAC@50Hz
Isolation Resistance:
≥500MΩ@5000VDC
Contact Resistance:
≤30mΩ (50rpm)
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy
Working Temperature:
-20°C~+60°C
Working Humidity:
90 %RH
IP Protection Grade:
IP30
Operating Speed:
0~ 60rpm
Inner Diameter:
Ø260mm
Lead Wire Size:
0.3mm2 Cable
Lead Wire Length:
Rotor:1000mm; Stator:1000mm
Highlight:

Inner bore 140mm Slip Ring

,

Amusement Equipment Through Hole Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description

Through Hole Slip Ring with Inner bore 140mm For Amusement Equipment



ECN140-01P-3500V-S is CENO Amusement equipment Slip Ring with through hole big bore 140mm and Voltage 3500V. Unlike standard or off-the-shelf slip ring, this amusement equipment slip ring are create to the exact specifications and functionality require for a specific project of equipment to fit precisely into the entire entire system and ensure optimal performance in the intended environment. For more information about how CENO slip rings can fit your special applications please contact us.





Features

  • Through hole design and inner or outer diameter is optional
  • Long service life with Low friction
  • Can be integrated various data
  • Install easy & Free maintenance



Applications

  • Amusement equipment
  • Display equipment
  • Automatic processing equipment
  • Turbine
  • Robot



Optional

  • Circuit, Voltage, Current
  • Protection grade
  • Contact / Housing Materials
  • Shape and Dimensions
  • Working speed






Specification

ECN140-01P-3500V-S

 Specification
Current & Circuits 1 circuit * 1A
Rating Voltage 0~3500VDC
Dielectric strength ≥8000VAC@50Hz
Isolation resistance ≥500MΩ@5000VDC
Contact resistance ≤30mΩ (50rpm)
Contact material Precious metal
Housing material Aluminum alloy
Working temperature -20°C~+60°C
Working humidity 90 %RH
IP protection grade IP30
Operating speed 0~ 60rpm
Inner diameter Ø140mm
Outer diameter Ø260mm
Lead wire size 0.3mm2 Cable
Lead wire length Rotor:1000mm; Stator:1000mm







 Outline Drawing
 Through Hole Slip Ring with Inner bore 140mm For Amusement Equipment 0





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
